Covalence HTLP

Covalence Products

(click image to enlarge)
SKUInfo/Size
3-HTLP60-DCS-
  • Tensile strength at break: 3300 psi (22.8 MPa)
  • Elongation at break: 600 %
  • Hardness, Shore D: 57
  • Density: 0.97 kg/dm³
  • A cut piece (pre-cut sleeve and separate closure patch).
HTLP-PP-CLAMP

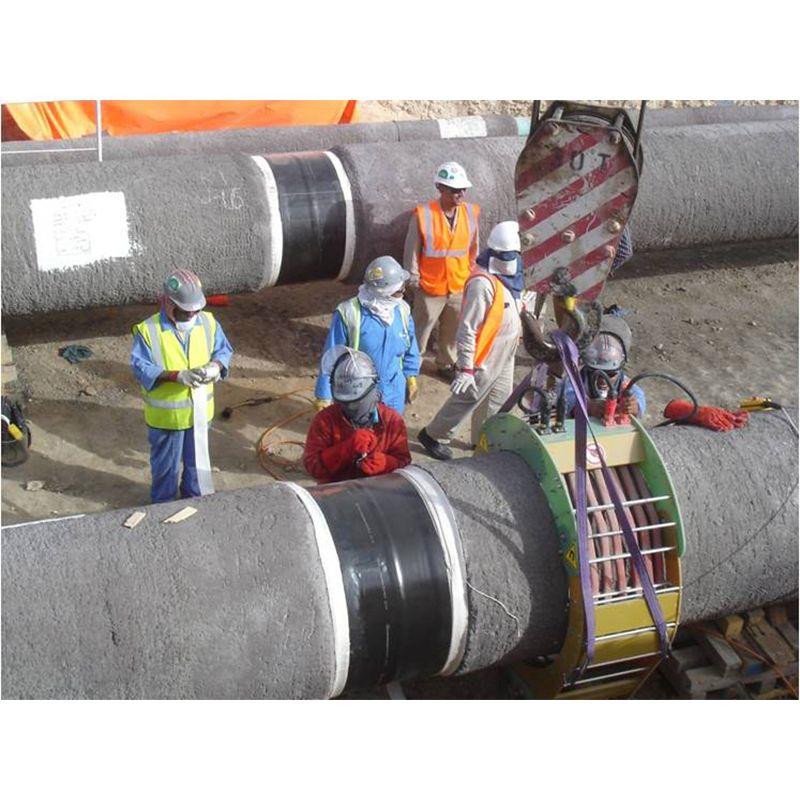

  • EQ-CLAMP-COIL: induction coil for specific pipe diameter and sleeve width.
HTLP-PP-EQKIT
  • EQ-T0-KIT-BN60-1.5MM: torch with specific nozzle opening.
  • Nozzle Opening: 1.5 MM
HTLP-PP-GENE
  • EQ-GENERATOR-IHG-120-WITH-CABLE: generator for induction coil.
HTLP-PP-HEAT
  • EQ-HEAT-SHIELD-150X3X25M: to protect the PP line coating while preheating the steel area.
HTLP-PP-NOZZLE
  • - EQ-NOZZLE-BN40: for pipe sizes from 3” to 10”
HTLP-PP-SPACE
  • EQ-SPACER-SET: set of spacers to lift up the sleeve during initial installation steps
HTLP-PP-US
  • Peel to primed steel and 3LPP: 10.2 N/mm
  • Peel to primed steel after heat aging: 0.77
  • Cathodic disbondment: 4.4 mm
  • Impact resistance: 11 J/mm
  • Indentation resistance: 0.9 mm
HTLP80-CLPA
  • Cathodic disbondment: 17 mm radius with S1301-M epoxy
  • Peel to Steel: 40 lbs/in.width
  • Hot water immersion: No delamination, no blisters or water ingress
  • Soil stress creep resistance: 0.003 in ( 0.067mm)
  • A closur
HTLP80-CP
  • Cathodic disbondment: 17 mm radius with S1301-M epoxy
  • Peel to Steel: 40 lbs/in.width
  • Hot water immersion: No delamination, no blisters or water ingress
  • Soil stress creep resistance: 0.003 in ( 0.067mm)
  • A cut pi
HTLP80-HP-CLPA
  • Cathodic disbondment: < 10 mm radius With S1301-M epoxy
  • Peel to Steel: 6 N/mm
  • Hot water immersion: No delamination, no blisters or water ingress
  • Soil stress creep resistance: 0.003 in ( 0.067mm)
  • A closure patch
HTLP80-HP-CP
  • Cathodic disbondment: < 10 mm radius With S1301-M epoxy
  • Peel to Steel: 6 N/mm
  • Hot water immersion: No delamination, no blisters or water ingress
  • Soil stress creep resistance: 0.003 in ( 0.067mm)
  • A cut piece (pr
HTLP80-HP-RL
  • Cathodic disbondment: < 10 mm radius With S1301-M epoxy
  • Peel to Steel: 6 N/mm
  • Hot water immersion: No delamination, no blisters or water ingress
  • Soil stress creep resistance: 0.003 in ( 0.067mm)
  • A roll (closure
HTLP80-HP-US
  • Cathodic disbondment: < 10 mm radius With S1301-M epoxy
  • Peel to Steel: 6 N/mm
  • Hot water immersion: No delamination, no blisters or water ingress
  • Soil stress creep resistance: 0.003 in ( 0.067mm)
  • A Uni-sleeve (p
HTLP80-RL
  • Cathodic disbondment: 17 mm radius with S1301-M epoxy
  • Peel to Steel: 40 lbs/in.width
  • Hot water immersion: No delamination, no blisters or water ingress
  • Soil stress creep resistance: 0.003 in ( 0.067mm)
  • A roll (
HTLP80-US
  • Cathodic disbondment: 17 mm radius with S1301-M epoxy
  • Peel to Steel: 40 lbs/in.width
  • Hot water immersion: No delamination, no blisters or water ingress
  • Soil stress creep resistance: 0.003 in ( 0.067mm)
  • A Uni-sl
Quick Overview
    The Covalence® HTLP-PP system is a 3-layer polypropylene-field-joint coating system for polypropylene coated pipes. Specifically, it is a wraparound, polypropylene based heat-shrinkable sleeve and is designed for corrosion prevention and sealing for polypropylene coated pipelines, operating at temperatures up to 120°C. HTLP-PP is especially suited for higher stress conditions caused both by elevated temperatures and by soils with severe contraction between wet-dry cycles. The HTLP-PP is normally used for girth weld protection of steel pipes coated with polypropylene. Product features include that it is available as a one-piece wraparound unit, it has high shear resistance, it has a high operating temperature rating, and that it keeps backing elasticity at elevated temperatures. Some benefits of the product include that it saves money by keeping application costs low, it provides high functional performance and safety, it has top performance in demanding conditions, it has enhanced resistance to cracking at elevated temperatures. Covalence® HTLP-PP products are available as a total system. The EQ Clamp Coil is an induction coil for specific pipe diameter and sleeve width. Contact your Seal For Life representative for more information.
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Additional Information
Manufacturer: Covalence Products
For More Information on the Covalence HTLP, [Click Here] to Link to Manufacturer Web Site
