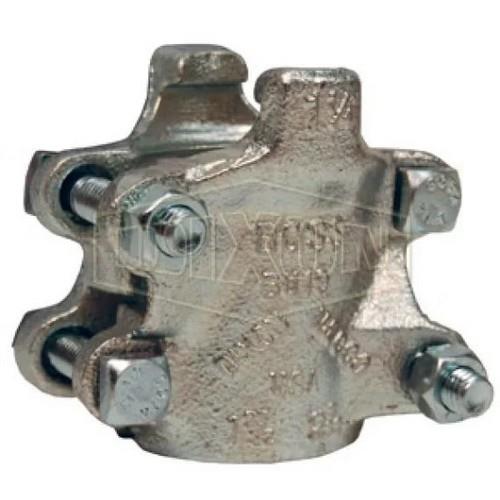

Boss® Clamp 4 Bolt Type, 2 Gripping Fingers

B14

Dixon Valve & Coupling Company

DIXON BOSS HOSE CLAMP
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    • Break Quantity: 1
    • Optional Package/Box Quantity: 1
    • Material: Zinc Plated Iron
    • Torque: 21 ft. lbs.
    • Hose ID: 1" (25 mm)
    • Hose OD From: 1-44/64" (42.9 mm)
    • Hose OD To: 1-60/64" (49.2 mm)
    • Features: 4-bolt type clamp with 2 gripping fingers and 2 clamp sections
    • Specifications: Recommended for steam service up to 450°F (232°C).
    • Use:
      • The correct size Boss Clamp must be used.
      • Bolts in Boss Clamps are designed to bend as they are tightened. This allows the clamp to conform to the hose outside diameter.
      • Always tighten bolts to their specified torque value.
      • Periodic re-tightening of bolts is required due to "cold flow" phenomenon present in all rubber hoses.
      • Boss Clamps are for single use only! Once removed they are to be discarded.
    Additional Information
    Manufacturer: Dixon Valve & Coupling Company
    For More Information on the Boss® Clamp 4 Bolt Type, 2 Gripping Fingers, [Click Here] to Link to Manufacturer Web Site
