Pipe Support Model No. 6-RAH-7 - Galvanized

6-RAH-7 HDG

Miro Industries, Inc.

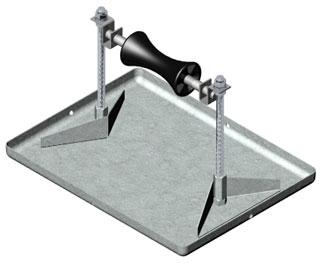

A "roller-bearing" pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating roller which is made of a stainless steel rod and a polycarbonate resin roller. The pipe support base is made hot-dip galvanized steel and all other metal parts are made of stainless steel. Pipestand will accommodate up to a 6" (inside diameter) pipe or up to 8-1/2" (outside diameter) pipes.
(click image to enlarge)
Quick Overview

  • Base Material: Galvanized

  • Size: The deck base is 12.10" x 16.10", has a maximum cradle width of 8-1/2", and can adjust in height from a low of 3.5" to a high of 7" in elevation above the roof membrane.

  • Max Pipe Size: 6" inside diameter and 8-1/2" outside diameter.

  • Max Pipe Clearance: Can adjust in height from a low of 3.5" to a high of 7" in elevation above the roof membrane.

  • Max Load Weight: Maximum load weight not to exceed 349 lbs. per pipestand.

  • Spacing: Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load.
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Additional Information
Manufacturer: Miro Industries, Inc.
For More Information on the Pipe Support Model No. 6-RAH-7 - Galvanized, [Click Here] to Link to Manufacturer Web Site
