OES9138 Oscillating Edge Sander, 3HP, 3Ph, 230V/460V

1791293

Powermatic

The large 11-3/4" x 48" table on the OES9138 oscillating edge sander travels a full 8" in vertical height to accommodate most woodworking pieces. It will also tilt negative 5° and out to positive 45°. The cast iron platen is a generous 48" x 9-1/2" and covered with graphite for production sanding, offering super support and cooler running to extend belt life. With 24 oscillations per minute you can use the entire belt face without burning. A 3HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with two sealed ball bearings for trouble-free performance. Dual dust collection ports keep the work area clean and extend the life of your abrasive belt.

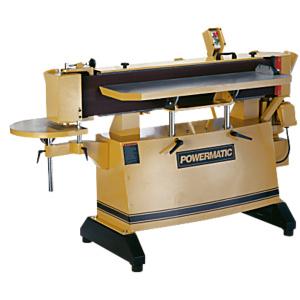

(click image to enlarge)
Quick Overview

  • Part Number: 1791293


  • Belt Size (W x L): 9 x 138 3/4 "


  • Electrical Controls: Magnetic starter


  • Belt Speed: 3542 sfpm


  • Table Size (L x W): 48 x 11 3/4 "


  • Drum Diameter: 4 " Outboard, 9 " Drive


  • Table Tilt: 5 ° in, 45 ° out


  • Platen Size: 9 1/2 " x 48 "


  • End Table Size: 18 " radius


  • End Table Tilt: 40 ° in, 45 ° out


  • Table Working Height: 34 1/2 to 40 3/4 "


  • Dust Port Outside Diameter: 4 "


  • Dust Collection Minimum CFM Required: 1100 cu.ft/min


  • Fence (L x H): n.a.


  • Oscillations Per Minute: 24


  • Motor Power: 3 HP


  • Motor Phase: 3 Ph


  • Motor Voltage: 230 V


  • Prewired Voltage: 230 V


  • Model Number: OES9138


  • Brand: Powermatic


  • Overall Dimensions: 83 x 32 x 50


  • Height: 50 inch


  • Width: 32 inch


  • Length: 83 inch


  • Net Weight: 800 pound
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details

  • 3HP motor with 9" x 138-3/4" abrasive belt handles large workpieces


  • Oscillates 24 cycles per minute for better finish and longer belt life


  • 9-1/2" x 48" platen with graphite pad offers largest work surface in its class


  • Rugged bearing-assisted tensioning device for fast belt changes and quick adjust tracking


  • Pedestal control switch for easy access


  • Large 11-3/4" x 48" front worktable with 8" vertical travel and 45° tilt, includes miter head for angle work


  • Precision balanced 9" diameter drive drum and 4" diameter rubber coated idler pulley for positive drive and rigid tracking


  • Large radius end table has 6" vertical travel and 45° tilt for any angle and working height needed


  • Heavy-duty oscillating gearbox and shaft for long maintenance-free use


  • Hinged guard opens for infinite length sanding


  • Dual dust collection ports keep work area clean and extend abrasive belt life


  • Standard Equipment:


  • Two 4" dust ports


  • Tilting main and end tables


  • Platen with graphite pad
    • Additional Information
    Manufacturer: Powermatic
    For More Information on the OES9138 Oscillating Edge Sander, 3HP, 3Ph, 230V/460V, [Click Here] to Link to Manufacturer Web Site
