3 Anchor Lock

3AL

Gates and Sons, Inc.

(click image to enlarge)
Quick Overview
  • 16"x24" spacing
  • Light weight form 5#/sq. ft.
  • Pass through ties
  • Self spreading system since hardware is attached to form
  • No loose hardware
  • Lock mounted on horizontal 2x6 on 16" centers
  • Vertical 4x4 non load bearing stiffback

48WS.com LLC is a website development company. We do not sell products.

Are you a distributor interested in a free demo, or a manufacturer looking to have your products displayed in your distributors' online catalogs? Contact us at:

Phone: 657-777-3411
Email: sales@48ws.com

Details

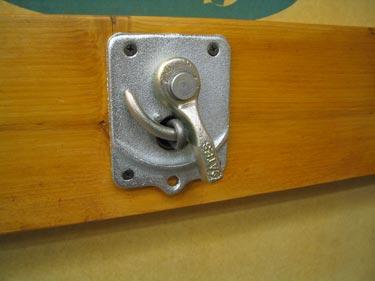

3 Anchor Lock in the lock open position

3 Anchor Lock TMS-3 tie

  • (1 1/2" Breakback) with a 4 1/4" plastic tie hole sleeve for easy cleaning.

12' tall #3 Anchor Lock forms

  • note:- lock mounted on the horizontal 2x6
  • non load bearing vertical 4x4 stiffback

3M Anchor Lock

  • 2x6's on 16" center horizontal with vertical 4x4 strongbacks.
  • Lock mounted on the horizontal 2xflats.
  • 2x2 angle at gang ends for connection with U-dogs
  • 16"x24" tie spacing
  • 18' tall gang x16' long

Special median barrier using #3 Anchor and taper ties

  • note the top and bottom blockouts
Additional Information
Manufacturer: Gates and Sons, Inc.
For More Information on the 3 Anchor Lock, [Click Here] to Link to Manufacturer Web Site
