Radius 9 Anchor Lock

R9AL

Gates and Sons, Inc.

(click image to enlarge)
Quick Overview

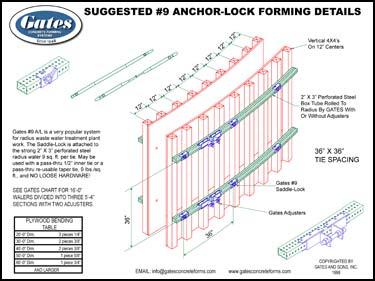

    9 Anchor Lock radius forming
    • No loose hardware
    • 3'x3' spacing
    • Vertical 4x4's
    • Horizontal 2x3 rolled box tube with #9 side locks attached
    • Taper ties or she bolts w/ 1/2" inner ties
    • Adjusters available on rolled box tube for varying radii
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details
18' tall radius #9 Anchor Lock form
  • Lock attached to rail
  • 2 adjusters on 16' rail
  • Dual duty scaffold brackets w/ safety rail posts

Large expanse of inside radius forms

Inside radius #9 Anchor Lock form being flown into place.

A large radius #9 job at the Denver Convention center
  • note the 3' scaffold /reattachment brackets and safety rails being used
  • 24' tall forms

A combination of straight #9 Anchor Lock and radius at the convention center job.
  • note the lock fast column form in the background

A very nice, tight radius, job built #9 Anchor Lock radius job in Canada

Exterior #9 Anchor Lock forms set on the Canadian job.

Closeup showing the #9 side locks, adjusters, vertical 4x4's, 2x2 angle connection points and U dogs.

Additional Information
Manufacturer: Gates and Sons, Inc.
For More Information on the Radius 9 Anchor Lock, [Click Here] to Link to Manufacturer Web Site
