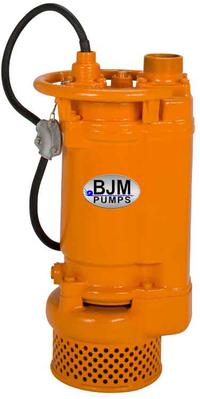

Top DIscharge Heavy Duty Dewatering pumps-KB55H-460T

KB55H-460T

BJM Pumps, LLC

KB Series Submersible pumps feature.

Abrasive resistant chrome iron components;
  • Agitator- to fluidize settled solids into suspension.
  • Wear plate- replaceable hardened surface on the suction side where erosion would cause a loss of pump performance.
  • Semi- open Impeller- to handle some solids.

EVERY KB pump model is protected by;
  • Class H motor insulation- and built in amperage (FLA) and temperature overload protection.
  • Double mechanical seals- SiC/SiC lower & Carbon Ceramic upper in a separate oil filled seal chamber.
  • Heavy Duty Lip Seal- additional protection for the mechanical seals.
  • Stainless steel shaft and shaft sleeve- saves on shaft wear due to abrasives and corrosion.

The KB Series are top discharge pumps;
  • KB pumps are utility pumps -frequently dragged from one site to another. The KB doesn't have a side discharge connection that can break off or be damaged as it is pulled and pushed into place.
  • Top discharge pumps are cooled by pumped liquid- The KB pumps can pump a sump or pit down to within "inches" of the bottom. A side discharge pump without a cooling jacket must stay submerged to avoid overheating, leaving as much as 3 feet of un-pumped slurry.
  • Top discharge means "SLIM"- even the largest model with a 13.5 inch "waistline" will fit down a manhole with a hose attached. High-Chrome Agitator helps keep solids suspended in liquid and helps prevent pump from clogging.
(click image to enlarge)
Quick Overview
    Manual Starter Box:
    Recommended accessories:
  • Manual On/Off starter box for KB55H-230 = BJM Item # 201145
  • Manual On/Off starter box for KB55H-460 = BJM Item # 201125
  • Manual On/Off starter box for KB55H-575 = BJM Item # 201125

    • Auto Starter Box:
  • Auto On/Off starter box for KB55H-230 = BJM Item # 201146
  • Auto On/Off starter box for KB55H-460 = BJM Item # 201126
  • Auto On/Off starter box for KB55H-575 = BJM Item # 201126

    • Simplex Control Panel - (3 mechanical float switches):
  • Three Phase control Panel for KB55H-230 = BJM Item # 201077
  • Three Phase control Panel for KB55H-460 = BJM Item # 201085
  • Three Phase control Panel for KB55H-575 = BJM Item #201084

    • Duplex Control Panel - (4 mechanical float switches):
  • Three Phase control Panel for KB55H-230 = BJM Item # 201088
  • Three Phase control Panel for KB55H-460 = BJM Item # 201096
  • Three Phase control Panel for KB55H-575 = BJM Item # 201095

    • Seal Minder: can be added easily by attaching the optional Seal Minder cord:
  • 50’ cord: BJM Item # 201714

    • Applications
  • Settling Basins
  • Retention Ponds
  • Wash down sumps
  • Sand & gravel dewatering
  • Barge & tank cleanout
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details
General Data
  • Max. Flow: Gpm: 277
  • Max. Head: Ft: 117'
  • Pump Type: Top Discharge, Dewatering
  • Discharge Size: 3" NPT-M
  • Max. Submerged Depth: 65'
  • Shipping Weight:Lbs: 335

    • Construction/Material Data
  • Motor Casing: Cast Iron
  • Pump Volute: Ductile Iron
  • Impeller - Multi Vane: Hi-Chrome
  • Lip Seals & O-Rings: Buna - N
  • Rotor Shaft: 304 SS
  • External Hardware: 304 SS
  • Qty. Oil In Seal Chamber: 49 U.S. FL. OZ.

    • Electrical/Motor Data
  • Motor Rating: Hp: 7.5
  • Motor Rpm: 3450
  • Motor Insulation Class: H
  • Motor Service Factor: 1.1
  • Voltage: 230/460/575, 3ph-60Hz
  • Current F.L.A.: 9.9
  • Motor Protection: Thermal & Amp Overload
  • Power Cord: Gage; Length: A.W.G. 10/5; 50', SOOW
  • Maximum Liquid Temperature: 104° F
  • Seal Minder: Optional
    • Additional Information
    Manufacturer: BJM Pumps, LLC
