Agitator- to fluidize settled solids into suspension.
Wear plate- replaceable hardened surface on the suction side where erosion would cause a loss of pump performance.
Semi- open Impeller- to handle some solids.

EVERY KB pump model is protected by;

Class H motor insulation- and built in amperage (FLA) and temperature overload protection.
Double mechanical seals- SiC/SiC lower & Carbon Ceramic upper in a separate oil filled seal chamber.
Heavy Duty Lip Seal- additional protection for the mechanical seals.
Stainless steel shaft and shaft sleeve- saves on shaft wear due to abrasives and corrosion.

The KB Series are top discharge pumps;

KB pumps are utility pumps -frequently dragged from one site to another. The KB doesn't have a side discharge connection that can break off or be damaged as it is pulled and pushed into place.
Top discharge pumps are cooled by pumped liquid- The KB pumps can pump a sump or pit down to within "inches" of the bottom. A side discharge pump without a cooling jacket must stay submerged to avoid overheating, leaving as much as 3 feet of un-pumped slurry.
Top discharge means "SLIM"- even the largest model with a 13.5 inch "waistline" will fit down a manhole with a hose attached. High-Chrome Agitator helps keep solids suspended in liquid and helps prevent pump from clogging.

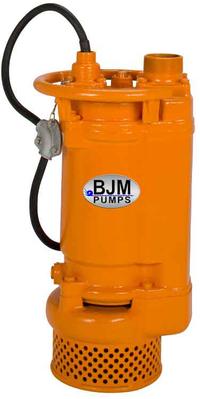

(click image to enlarge)

Quick Overview

Recommended accessories:

Manual Starter Box:

Manual On/Off starter box for KB110H-460 = BJM Item # 201129
Manual On/Off starter box for KB110H-575 = BJM Item # 201129

Auto Starter Box:

Auto On/Off starter box for KB110H-460 = BJM Item # 201130
Auto On/Off starter box for KB110H-575 = BJM Item # 201130

Simplex Control Panel - (3 mechanical float switches):

Three Phase control Panel for KB110H-460 = BJM Item # 201077
Three Phase control Panel for KB110H-575 = BJM Item # 201086

Duplex Control Panel - (4 mechanical float switches):

Three Phase control Panel for KB110H-460 = BJM Item # 201088
Three Phase control Panel for KB110H-575 = BJM Item # 201097

Seal Minder: can be added easily by attaching the optional Seal Minder cord

50’ cord: BJM Item # 201714

Aplication

Settling Basins
Retention Ponds
Wash down sumps
Sand & gravel dewatering
Barge & tank cleanout

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

General Data

Max. Flow: Gpm: 356

Max. Head: Ft: 170'

Pump Type: Top Discharge, Dewatering

Discharge Size: 4" NPT-M

Max. Submerged Depth: 65'

Shipping Weight:Lbs: 427

Construction/Material Data

Motor Casing: Cast Iron

Pump Volute: Ductile Iron

Impeller - Multi Vane: Hi-Chrome

Lip Seals & O-Rings: Buna - N

Rotor Shaft: 304 SS

External Hardware: 304 SS

Qty. Oil In Seal Chamber: 49 U.S. FL. OZ.

Electrical/Motor Data

Motor Rating: Hp: 15

Motor Rpm: 3450

Motor Insulation Class: H

Motor Service Factor: 1.1

Voltage: 230/460/575, 3ph-60Hz

Current F.L.A.: 18.7

Motor Protection: Thermal & Amp Overload

Power Cord: Gage; Length: A.W.G 8/5; 50', SOOW

Maximum Liquid Temperature: 104° F

Seal Minder®: Optional

Additional Information

Manufacturer: BJM Pumps, LLC

For More Information on the Top DIscharge Heavy Duty Dewatering pumps-KB110H-460T, [Click Here] to Link to Manufacturer Web Site
