• Max. Flow: Gpm: 51
• Max. Head: Ft: 19'
• Pump Type: Non Clog Vortex
• Discharge Size: 2" NPT-M (45° elbow)
• Max. Submerged Depth: 65'
• Min. Submerged Depth: 9.5"
• Shipping Weight:Lbs: 36

• Motor Casing: 304SS
• Pump Volute: Cast Iron
• Lip Seals & O-Rings: Buna - N
• Rotor Shaft: 304 SS
• External Hardware: 304 SS
• Qty. Oil In Seal Chamber: 5.1 U.S. FL. OZ.

• Motor Rating: Hp: 0.33
• Motor Rpm: 3450
• Motor Insulation Class: B
• Motor Service Factor: 1
• Voltage: 115/230, 1ph-60 Hz
• Current F.L.A.: 4
• Motor Protection: Thermal Breaker
• Power Cord: Gage; Length: A.W.G. 16/3, 33', STOW
• Maximum Liquid Temperature: 104° F
• Seal Minder: Not Available

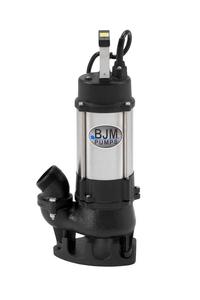

Non-Clog Electric Submersible Pumps for Sludge, Sewage, Trash & Industrial Waste

The SV-pumps are equipped with Vortex impellers, undoubtedly the best non-clog impellers ever invented for the handling of mud, raw sewage, viscous liquids, rags, wood chips and other solids. They pass solid up to 90% of pump outlet diameter.

• Longer Power Cord – Standard 33ft. power cord on pumps ½ HP and below and 50ft. on pumps 1HP and above.
• 304SS Motor Housing – Superior abrasion resistance will not wear out like aluminum motor housings when pumping sandy water.
• Three Seal Motor Protection - Motor is protected by double mechanical seals. Lower seal made of silicon carbide/silicon carbide and upper seal is made of carbon/ceramic. An additional lip seal has been installed above the impeller, to help prevent abrasives such as dirt, silt or sand, from entering into the seal chamber.
• More Motor Protection – Winding protection and (NEMA) Class F motor insulation allows motor temperature to raise to 230°F, superior to pumps with Class A and B insulation. Automatic switch turns pump motor off if temperature and/or amp draw raises too high. When the motor cools the switch will automatically reset and the pump will turn back on.
• Tough Pump Construction – Hardened cast iron stands up to rough handling and pumping sandy water unlike pumps with soft resin impellers or plastic exterior components.
