8' Type IAA Aluminum Round Rung Straight Ladder

508-1

Werner Co.

The 500-1 series are one-section round rung straight ladders with a duty rating of 375 pounds. The exclusive ALFLO rung joint means TWIST-PROOF performance every time. The side rails are extra heavy duty I-beam rails and the aluminum round rungs are deeply serrated for slip resistance. The duty rating goes to 300 pounds with the 18', 20' and 24' lengths.

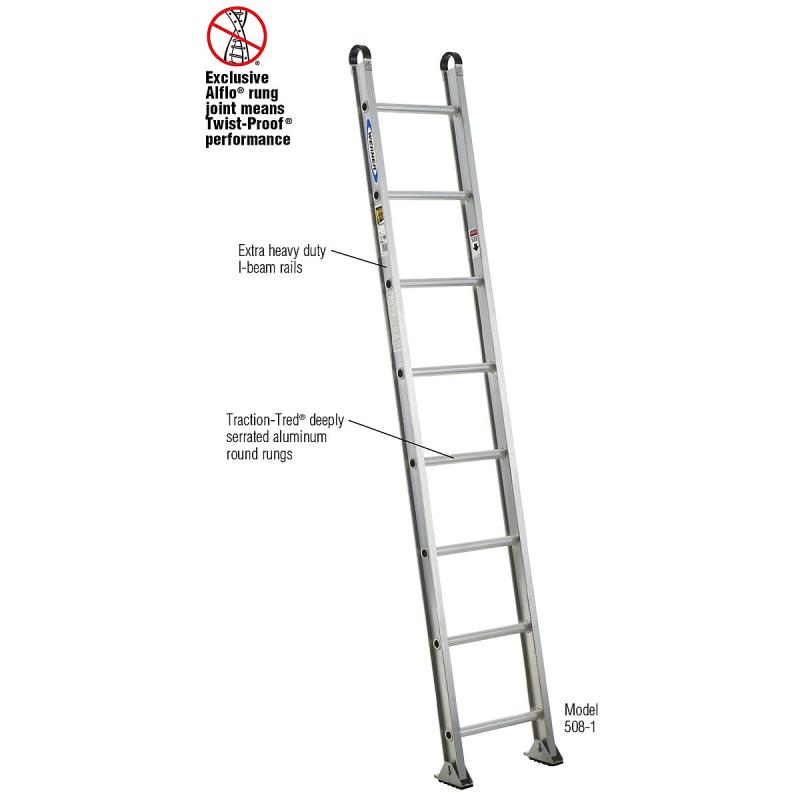

(click image to enlarge)
Quick Overview

    Features include:

  • Exclusive ALFLO Rung joint means TWIST-PROOF Performance
  • 1-1/4" Slip-resistant TRACTION-TRED round rungs
  • Extra heavy duty I-beam rails
  • Heavy duty, self-aligning, free-swinging shoe with slip-resistant tread and replaceable steel spur plate
  • Hoop end caps
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details

Dimensions

  • Rails Dimension: 3"
  • Flange Dimension: 1-3/16"
  • Rung Dimension: 1-1/4"
  • Base Width: 16-7/8"

  • Specifications

  • Size: 8'
  • Reach Height: 11'
  • Load Capacity: 375 lbs.
  • Type: Type IAA Duty Rating
  • Performance Rating:5 Star
  • Material: Aluminum
  • Rung Type: Round
  • Foot Material: Slip-resistant pad
  • Number of Sections: 1
  • Certifications: ANSI A14.2 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 2.9

  • Additional 500-1 Series Models:
    Model No.SizeReach Height Load Capacity Type Approx. Cu. Ft. Per Unit
    508-18'11'375 lbs.Type IAA Duty Rating2.9
    510-110'13'375 lbs.Type IAA Duty Rating3.6
    512-112'15'375 lbs.Type IAA Duty Rating4.3
    514-114'17'375 lbs.Type IAA Duty Rating5
    516-116'19'375 lbs.Type IAA Duty Rating5.7
    518-118'20'300 lbs.Type IA Duty Rating6.4
    520-120'22'300 lbs.Type IA Duty Rating7.1
    524-124'26'300 lbs.Type IA Duty Rating14
    Additional Information
    Manufacturer: Werner Co.
