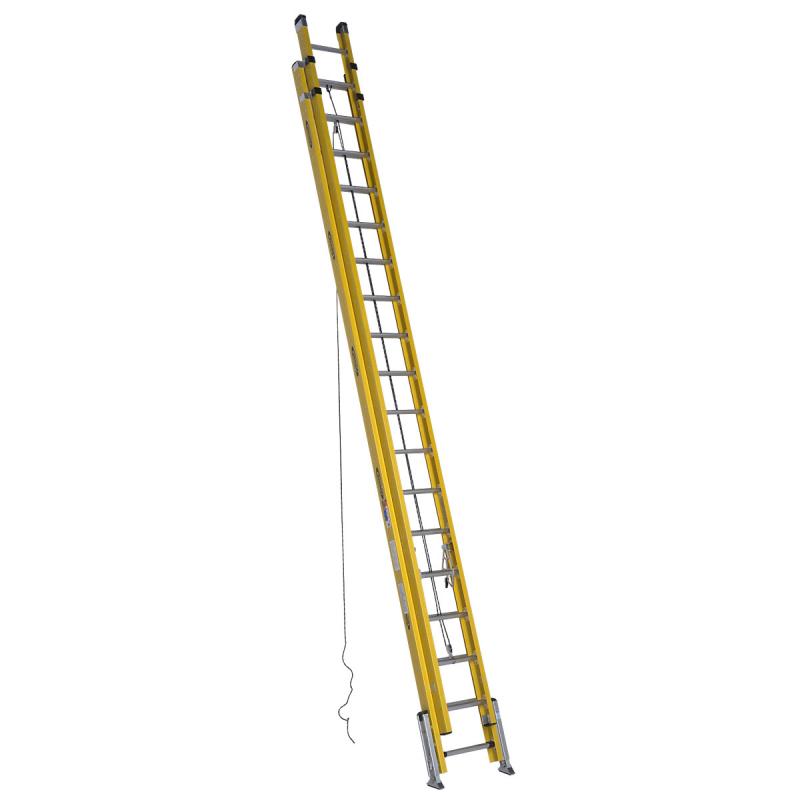

36' Type IAA Fiberglass D-Rung Leveling Extension Ladder

D7136-2LV

Werner Co.

The D7100-2LV series extension ladders boast a duty rating of 375 pounds and have factory-installed LeveLok levelers to enable the ladders to adapt to uneven terrain. With simple foot action, each leveler can extend up to 10" in 3/16" increments. These ladders are ideal for utility or telecommunication industries. The external guides at the top of the base section secure the interlocking rails. The top of the fly section has pre-pierced holes for easy installation of accessories. The base and fly sections easily separate to use the base section as a single ladder. Fiberglass rails are non-conductive for working near electricity. (36' & 40' do not have interlocking rails.

(click image to enlarge)
Quick Overview

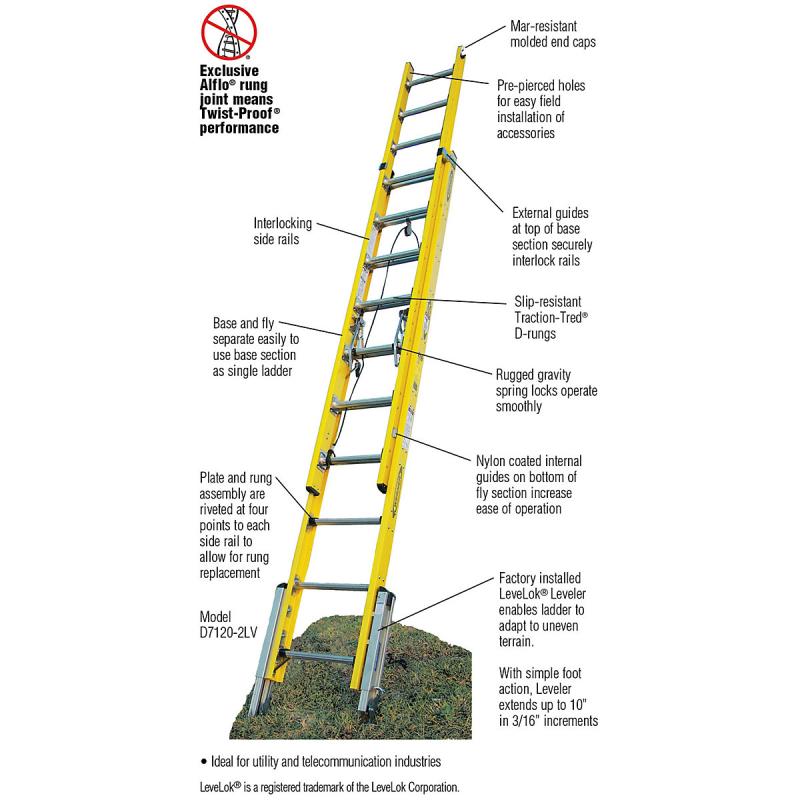

    Features include:

  • Factory installed LeveLok Leveler enables ladder to adapt to uneven terrain
  • With simple foot action, Leveler extends up to 10” in 3/16” increments
  • Exclusive ALFLO Rung Joint Means TWIST-PROOF Performance
  • 1-5/8" Slip-resistant TRACTION-TRED D-rungs
  • Plate and rung assembly are riveted at four points to each side rail to allow for rung replacement
  • Interlocking Side Rails with nylon coated internal rail guides on bottom of fly section increase ease of operation
  • External guides at top of base secton securely interlock rails
  • Rugged gravity spring locks operate smoothly
  • Rugged, heavy duty extruded rung locks are spring loaded to operate smoothly
  • Pre-pierced holes for easy field installation of accessories
  • Dual action feet with slip-resistant pad and spur plate for use on hard or penetrable surfaces
  • Mar-Resistant Molded End Caps
  • Ideal for utility and telecommunication industries
  • LeveLok is a registered trademark of the LeveLok Corporation.
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details

Dimensions

  • Rails Dimension: 4"
  • Flange Dimension: 1-3/4"
  • Rung Dimension: 1-3/4"
  • Fly Width: 16-3/4"
  • Base Width: 22" outside rails, 25-3/4" outside shoes

  • Specifications

  • Size: 36'
  • Reach Height: 34'
  • Max Working Length: 32'
  • Load Capacity: 300 lbs.
  • Type: Type IA Duty Rating
  • Performance Rating: 4 Star
  • Material: Fiberglass
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.5 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 20.2
  • Approx. Shipping Wt. Lbs.: 121

  • Additional D7100-2LV Series Models:
    Model No.SizeReach Height Max Working Length Load Capacity Type
    D7120-2LV20'19'17'375 lbs.Type IAA Duty Rating
    D7124-2LV24'23'21'375 lbs.Type IAA Duty Rating
    D7128-2LV28'27'25'375 lbs.Type IAA Duty Rating
    D7132-2LV32'31'29'375 lbs.Type IAA Duty Rating
    D7136-2LV36'34'32'300 lbs.Type IA Duty Rating
    D7140-2LV40'37'35'300 lbs.Type IA Duty Rating
    Additional Information
    Manufacturer: Werner Co.
