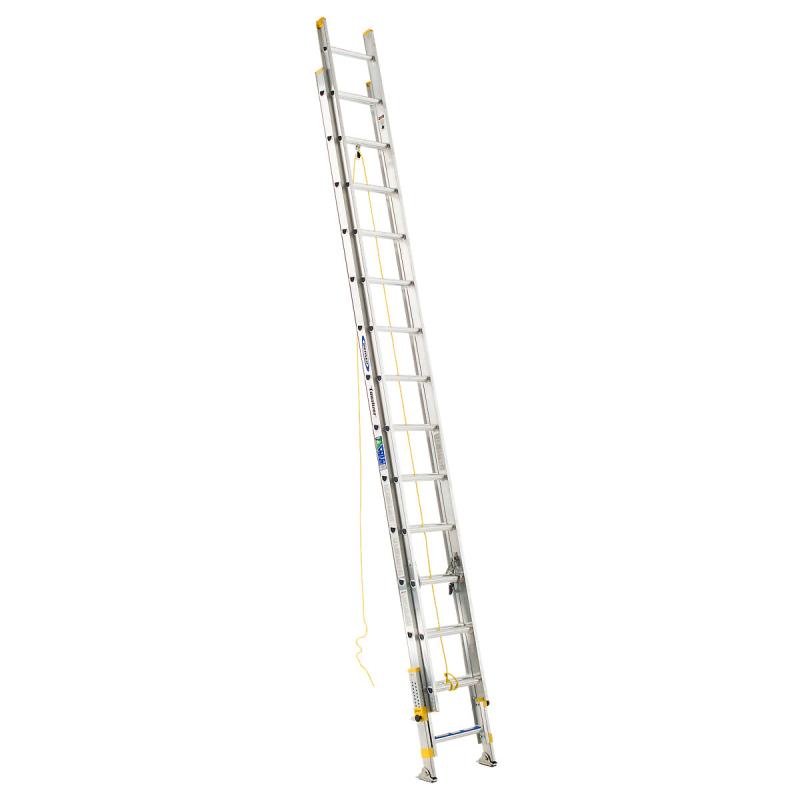

28' Type II Aluminum D-Rung Equalizer Extension Ladder

D1728-2EQ

Werner Co.

D1700-2EQ The Equalizer series eliminates uneven ground with the factory installed adjustable EverLevel leveling system. This system precisely adjusts in 3/8" increments up to 8 1/4", making it easy to use. The dual action feet on the ladder are for use on hard or penetrable surfaces and swivel easily. The Traction-Tred D-rungs are slip resistant. The ladder has a duty rating of 225 pounds making it durable, long lasting and able to meet the demands of the job. The exclusive ALFLO rung joint means a TWIST-PROOF performance every time, and the lightweight aluminum makes it easy to transport

(click image to enlarge)
Quick Overview

    Features include:

  • Factory installed adjustable EverLevel leveling system exceeds OSHA and ANSI requirements
  • Easily adjustable in 3/8" increments up to 8-1/4"
  • Exclusive ALFLO rung joint means TWIST-PROOF performance
  • 3" Slip-resistant Traction-Tred D-rungs
  • Durable extruded rung locks are spring loaded to operate smoothly
  • Convenient built-in bubble level
  • Heavy duty modified I-beam side rails
  • Dual action foot for use on hard or penetrable surfaces
  • Durable shoe rests flat on slip resistent pad or in spur position for use on hard or penetrable surfaces
  • Mar-resistant end caps
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details

Dimensions

  • Rails Dimension: 3"
  • Flange Dimension: 1-1/16"
  • Rung Dimension: 1-3/4"
  • Fly Width: 14-1/4"
  • Base Width: 17-3/8" outside rails (20-3/4" to outside of feet)

  • Specifications

  • Size: 28'
  • Reach Height: 27'
  • Max Working Length: 25'
  • Load Capacity: 225 lbs.
  • Type: Type II Duty Rating
  • Performance Rating: 2 Star
  • Material: Aluminum
  • Rung Type: D
  • Foot Material: Slip-resistant pad
  • Number of Sections: 2
  • Certifications: ANSI A14.2 (2007); OSHA
  • Approx. Cu. Ft. Per Unit: 11.2
  • Approx. Shipping Wt. Lbs.: 48.5

  • Additional D1700-2EQ Series Models:
    Model No.SizeReach Height Max Working Length Approx. Cu. Ft. Per Unit Approx. Shipping Wt. Lbs.
    D1716-2EQ16'15'13'6.527.5
    D1720-2EQ20'19'17'8.132.5
    D1724-2EQ24'23'21'9.639
    D1728-2EQ28'27'25'11.248.5
    Additional Information
    Manufacturer: Werner Co.
