Toggle & Swage Stud - Open Body S0789-0703

S0789-0703

Suncor Stainless, Inc.

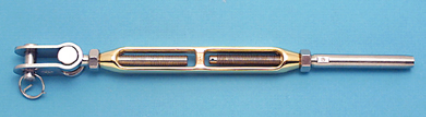

The Toggle And Swage Stud Turnbuckle Fits Wire Rope Sizes 1/8" To 5/16".
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    The Toggle And Swage Stud Turnbuckle Fits Wire Rope Sizes 1/8" To 5/16". This Turnbuckle Features A Toggle, Swage Stud, Unf Threads And Open Body Style. The Body Is Made From Bronze And The Toggle And Swage Stud Is Stainless Steel. They Are Ideal For Marine, Industrial And Architectural Applications.



    TOGGLE & SWAGE STUD - OPEN BODY
    MATERIAL: BRONZE BODY & STAINLESS ENDS
    UNF Thread

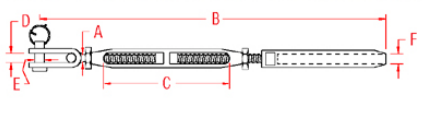

    ITEM A (size) BC (adjustment)DEF (wire)WT(lb)
    S0789-0703 1/4" 8.37" 3.50" 0.35"0.23"1/8"0.27
    S0789-07041/4"8.81"3.50"0.35"0.23"5/32"0.28
    S0789-07051/4"8.87"3.50"0.35"0.23"3/16"0.32
    S0789-09045/16"9.25"3.80"0.40"0.31"5/32"0.42
    S0789-09055/16"9.62"3.80"0.40"0.31"3/16"0.44
    S0789-10053/8"11.50"4.40"0.56"0.37"3/16"0.63
    S0789-10073/8"11.50"4.40"0.56"0.37"1/4"0.67
    S0789-1307 1/2" 13.00" 4.62" 0.63"0.47"1/4"1.48
    S0789-1308 1/2" 13.25" 4.62" 0.63"0.47"9/32"1.50
    S0789-1309 1/2" 13.75" 4.62" 0.63"0.47"5/16"1.50
    Additional Information
    Manufacturer: Suncor Stainless, Inc.
    For More Information on the Toggle & Swage Stud - Open Body S0789-0703, [Click Here] to Link to Manufacturer Web Site
