Details

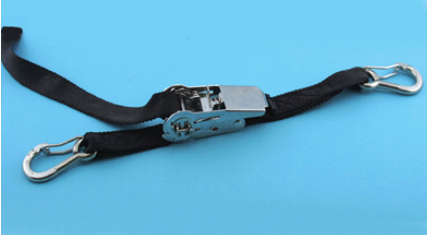

The Ratchet Assembly With Clips Is Available In Multiple Lengths And Webbing Widths From 1" To 2" To Fit Every Project, Big Or Small. It Features A Stainless Steel Ratchet Buckle And 2 Stainless Harness Clips. This Ratchet Assembly Is Ideal For Marine And Industrial Tie-Down Applications.

RATCHET ASSEMBLY W/ CLIPS
GRADE: 304 & 316 STAINLESS STEEL Nylon & Polyester Webbing Available
ITEM	WEBBING(width)	LENGTH(overall)	LENGTH(fixed end)	CLIPS(part)	WLL(lb)	WT(lb)
BLACK
S0201-0325	1"	3'	12"	S0172-0080	350	0.86
S0201-0425	1"	4'	12"	S0172-0080	350	0.89
S0201-0525	1"	5'	12"	S0172-0080	350	0.92
S0201-0625	1"	6'	12"	S0172-0080	350	0.95
S0201-1025	1"	10'	12"	S0172-0080	350	1.05
S0201-1225	1"	12'	12"	S0172-0080	350	1.11
S0201-1625	1"	16'	12"	S0172-0080	350	1.23
S0201-2025	1"	20'	12"	S0172-0080	350	1.35
S0201-2525	1"	25'	12"	S0172-0080	350	1.50
BLUE
S0201-0325-B	1"	3'	12"	S0172-0080	350	0.86
S0201-0425-B	1"	4'	12"	S0172-0080	350	0.89
S0201-0525-B	1"	5'	12"	S0172-0080	350	0.92
S0201-0625-B	1"	6'	12"	S0172-0080	350	0.95
S0201-1025-B	1"	10'	12"	S0172-0080	350	1.05
S0201-1225-B	1"	12'	12"	S0172-0080	350	1.11
S0201-1625-B	1"	16'	12"	S0172-0080	350	1.23
S0210-2025-B	1"	20'	12"	S0172-0080	350	1.35
WHITE
S0201-0525-W	1"	5'	12"	S0172-0080	350	0.92
S0201-1025-W	1"	10'	12"	S0172-0080	350	1.05
S0201-2025-W	1"	20'	12"	S0172-0080	350	1.35
BLACK
S0203-0338	1-1/2"	3'	14"	S0172-0100	1,100	2.38
S0203-0438	1-1/2"	4'	14"	S0172-0100	1,100	2.42
S0203-0538	1-1/2"	5'	14"	S0172-0100	1,100	2.46
S0203-0638	1-1/2"	6'	14"	S0172-0100	1,100	2.50
S0203-1038	1-1/2"	10'	14"	S0172-0100	1,100	2.66
S0203-1238	1-1/2"	12'	14"	S0172-0100	1,100	2.74
S0203-1638	1-1/2"	16'	14"	S0172-0100	1,100	2.90
S0203-2038	1-1/2"	20'	14"	S0172-0100	1,100	3.06
BLUE
S0203-0338-B	1-1/2"	3'	14"	S0172-0100	1,100	2.38
S0203-0438-B	1-1/2"	4'	14"	S0172-0100	1,100	2.42
S0203-0538-B	1-1/2"	5'	14"	S0172-0100	1,100	2.46
S0203-0638-B	1-1/2"	6'	14"	S0172-0100	1,100	2.50
S0203-1038-B	1-1/2"	10'	14"	S0172-0100	1,100	2.66
S0203-1238-B	1-1/2"	12'	14"	S0172-0100	1,100	2.74
S0203-1638-B	1-1/2"	16'	14"	S0172-0100	1,100	2.90
S0203-2038-B	1-1/2"	20'	14"	S0172-0100	1,100	3.06
BLACK
S0204-0350	2"	3'	17"	S0172-0120	1,540	3.72
S0204-0450	2"	4'	17"	S0172-0120	1,540	3.78
S0204-0550	2"	5'	17"	S0172-0120	1,540	3.84
S0204-0650	2"	6'	17"	S0172-0120	1,540	3.90
S0204-1050	2"	10'	17"	S0172-0120	1,540	4.13
S0204-1250	2"	12'	17"	S0172-0120	1,540	4.25
S0204-1650	2"	16'	17"	S0172-0120	1,540	4.49
S0204-2050	2"	20'	17"	S0172-0120	1,540	4.73
BLUE
S0204-0350-B	2"	3'	17"	S0172-0120	1,540	3.72
S0204-0450-B	2"	4'	17"	S0172-0120	1,540	3.78
S0204-0550-B	2"	5'	17"	S0172-0120	1,540	3.84
S0204-0650-B	2"	6'	17"	S0172-0120	1,540	3.90
S0204-1050-B	2"	10'	17"	S0172-0120	1,540	4.13
S0204-1250-B	2"	12'	17"	S0172-0120	1,540	4.25
S0204-1650-B	2"	16'	17"	S0172-0120	1,540	4.49
S0204-2050-B	2"	20'	17"	S0172-0120	1,540	4.73
