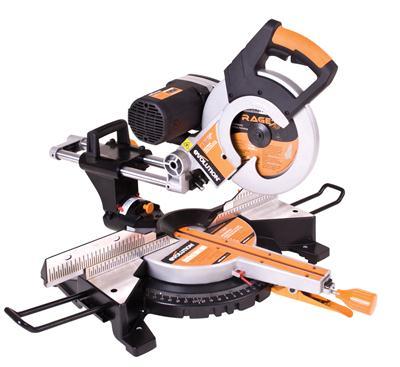

Rage3 - DB Multipurpose Double Bevel Compound Sliding Miter Saw

RAGE3DB

Evolution Power Tools

(click image to enlarge)
Quick Overview
  • Multipurpose; Cuts Steel, Aluminum, Wood & Plastic.  Easily cuts wood with nails.
  • No coolant required and produces virtually no sparks.
  • Compound tilt & slide mechanism.
  • Extra large base for cutting stability.
  • Extendable fence guard for long workpieces.
  • RAGE3 blade can produce up to 750 cuts per blade in 2' mild steel box section.
  • 12 5/8' slide action.
  • Last guidance for optimum accuracy.

48WS.com LLC is a website development company. We do not sell products.

Are you a distributor interested in a free demo, or a manufacturer looking to have your products displayed in your distributors' online catalogs? Contact us at:

Phone: 657-777-3411
Email: sales@48ws.com

Details

Technical Specifications:

  • Motor 120v ~ 60Hz - 2000W (Soft Start)
  • Amps - 15A
  • Horse Power - 2.5HP
  • Speed (No Load) - 2500 RPM
  • Maximum Depth of Cut (90° Bevel) - 3 1/4'
  • Maximum Depth of Cut (45° and -45° Bevel) - 2' | 1 1/4'
  • Maximum Width Cut (90° Miter) - 12 5/8'
  • Maximum Width Cut (45° and -45° Miter) - 8 3/4'
  • Maximum Miter Degree - 55° left / 55° right
  • Maximum Duty Cycle - 30 mins
  • Sound Pressure Level (No Load) - 94.0 dB(A)
  • Tool Weight - 46.5 lbs
  • Tool Dimensions (H x W x L) - 23 5/8' x 20' x 30 3/4'

Blade Specifications:

  • Diameter - 10'
  • Bore - 1'
  • Kerf (Thickness) - .078' (2.0mm)
  • Number of Teeth - 28

Supplied with:
RAGE3 Multipurpose TCT Blade, Box Spanner, 2 x Work Piece Supports & End Stop, Spare Carbon Brush Set, Top Clamp, Dust Bag, Safety Goggles, Ear Plugs & Manual.

Additional Information
Manufacturer: Evolution Power Tools
For More Information on the Rage3 - DB Multipurpose Double Bevel Compound Sliding Miter Saw, [Click Here] to Link to Manufacturer Web Site
