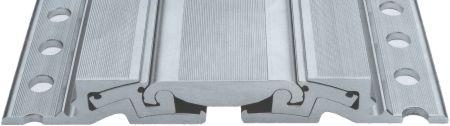

Interior Floor Expansion Joints FS-135-2500

FS-135

EMSEAL Joint Systems, Ltd.

The FS 135/2500 features the highest load capacity of the FS range and is unequalled in this respect in the industry.
(click image to enlarge)
Quick Overview

  • Composition : Solid Aluminum
  • Movement Capability : 1 1/2" (+3/4", -3/4")
  • Load Rating : Extra Heavy
  • Joint Size Up To : 1 3/8"
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details



The FS 135/2500 features the highest load capacity of the FS range and is unequalled in this respect in the industry.

It is uniquely suited to extra heavy loads and floors used by heavy fork-lift trucks, pallet trucks, luggage carts, gurneys, vendor carts, coin carts, and any other extra high-point load, heavy traffic.

For max. mean joint sizes up to 35 mm (1 3/8-inches)
at mid-point of expected service temperature range



DIMENSIONS and MOVEMENT CAPABILITY:
Joint Size
(Up to max. mean joint size)		Movement CapabilityVisible Width Overall WidthDeck-To-Wall OptionsProduction Length
35mm
(1 3/8")		+20mm (3/4")
-20 mm (3/4")

Total: 40 mm (1 1/2")		135mm
(5 3/8")		206mm
(8")		E-4 (wall flange turned up)

E-3 (wall flange turned down)		3 m
(9.84')


INSTALLATION LEG-HEIGHT OPTIONS:
Model:Installation HeightBlockout DepthBlockout Width
FS 135/250025mm (1")Blockout depth = Leg Height + 6mm (1/4-inch)6mm (1/4-inch) Blockout width will vary depending on joint-gap size--Consult EMSEAL


VEHICLE-LOADING CAPABILITY:
Pneumatic tire Load CapacitySolid rubber tire Load CapacitySolid plastic tires Load Capacity
60 MP25 MP30 kg/mm width of tire
For assistance in calculating wheel loads of expected fork lifts or other vehicles--Consult EMSEAL


Special properties
    • All-metal profile (aluminum)
    • Removable, replaceable bridging unit
    • ADA compliant
    • Fire-rating available through addition of EMSHIELD DFR.
    • Striated surface provides good skid resistance
    • Virtually smooth, impact-free traffic surface at any opening state of the joint
    • Extreme durability
    • Three-way movement capability
Additional Information
Manufacturer: EMSEAL Joint Systems, Ltd.
For More Information on the Interior Floor Expansion Joints FS-135-2500, [Click Here] to Link to Manufacturer Web Site
