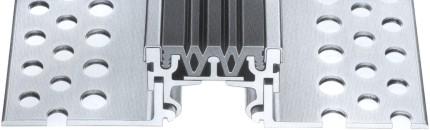

FP-60-NI Stainless Steel Capped

FP-60-NI

EMSEAL Joint Systems, Ltd.

For medium-to-heavy duty interior, floors with aggressive media.
(click image to enlarge)
Quick Overview

  • Composition : Stainless/Elastomeric
  • Movement Capability : 3/4" (+ 3/8, - 3/8)
  • Load Rating : Medium
  • Joint Size Up To : 2"

48WS.com LLC is a website development company. We do not sell products.

Are you a distributor interested in a free demo, or a manufacturer looking to have your products displayed in your distributors' online catalogs? Contact us at:

Phone: 657-777-3411
Email: sales@48ws.com

Details



For medium-to-heavy duty interior, floors with aggressive media.
Features heavy-duty, supported rubber insert and stainless steel caps.

For max. mean joint sizes up to 50 mm (2-inches)
at mid-point of expected service temperature range



    • Insert color: Black
    • Installation Leg Height choices: 45 mm (1 3/4"), 55 mm (2 1/8"), 65 mm (2 1/2"), 80mm (3 1/8"), 90mm (3 1/2"), 100mm (4")
    • Blockout depth = Leg Height + 3mm (1/8 inch)
    • Blockout width will vary depending on joint-gap size--Consult EMSEAL
    • Total movement capability: 20 mm = +10mm and -10mm (3/4 inches: +3/8" and -3/8")
    • Load capacity: Medium-to-Heavy duty interior use in areas subject to aggressive media and point-loading.
    • Fabrication length = 4 meters (13.12 LF)
    • Deck-to-wall (E-1 and E-3 and E-4) versions available.
    Special properties
    • ADA compliant
    • Fire-rating available through addition of EMSHIELD DFR--Consult EMSEAL
Additional Information
Manufacturer: EMSEAL Joint Systems, Ltd.
For More Information on the FP-60-NI Stainless Steel Capped, [Click Here] to Link to Manufacturer Web Site
