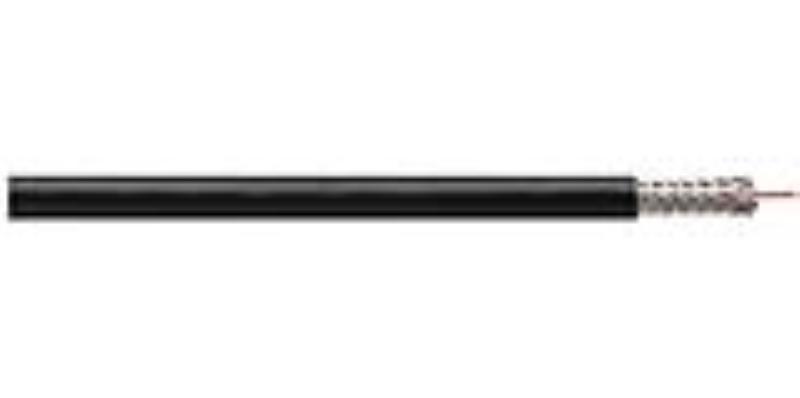

Coleman Cables M17/75-Rg214

988421

Coleman Cable - CCI

M17/75-Rg214
(click image to enlarge)
Quick Overview
    Features & Application:-
    • Manufactured in accordance with, tested & certified to individual Slant Sheets ie:(M17/028-RG058)
    • RoHS & REACH compliant insulating compounds
    • Test Reports with manufacturing lot for each & every cable
    • Certificate of Compliance with MIL-DTL-17
    • Made in the USA
    • High frequency RF antenna for ground support equipment
    • Radar systems & flight guidance equipment
    • Secure & cryptic aerospace communications
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties

Wall (in)* OD (in)*
Conductors 12.5 AWG (7/.030) Silver Coated Copper - 0.089
Dielectric Solid Polyethylene color natural 0.098 0.285
1st Shielding 96% Silver Coated Copper Braid - 0.313
2nd Shielding 98% Silver Coated Copper Braid - 0.341
Jacket PVC (Non-Contaminating Vinyl) 0.042 0.425
VALUE*
Conductor Resistance (Max./100 ft)- 0.17
Impedance (ohms) - 50
Capacitance (Max. pF/ft) - 32.2
Velocity of Propagation (%) - 66
Attenuation (Max. db/100 ft) 50 MHz1.7
400 MHz 5.5
3000 MHz 28
11000 MHz 60
SRL (Max db/100 ft) 1.0 GHz 20
3.0 GHz 19
5.0 GHz 18
11.0 GHz 17
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables M17/75-Rg214, [Click Here] to Link to Manufacturer Web Site
