Coleman Cables M17/84-Rg223

988423

Coleman Cable - CCI

M17/84-Rg223

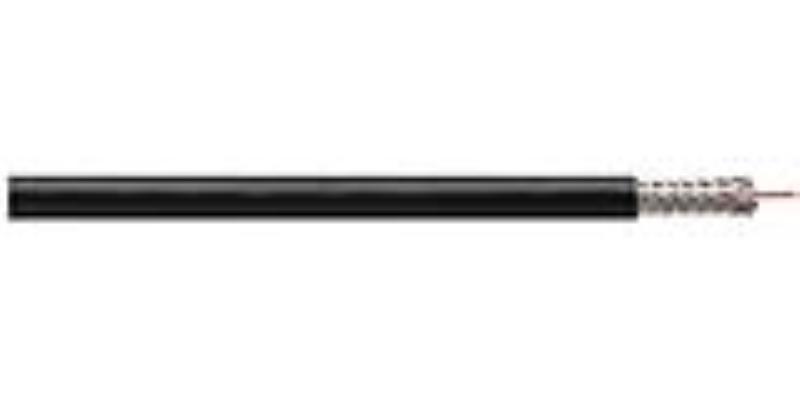

(click image to enlarge)
Quick Overview
    Features & Application:-
    • Manufactured in accordance with, tested & certified to individual Slant Sheets ie:(M17/028-RG058)
    • RoHS & REACH compliant insulating compounds
    • Test Reports with manufacturing lot for each & every cable
    • Certificate of Compliance with MIL-DTL-17
    • Made in the USA
    • High frequency RF antenna for ground support equipment
    • Radar systems & flight guidance equipment
    • Secure & cryptic aerospace communications
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties

Wall (in)* OD (in)*
Conductors 19 AWG (1/.035) Solid Silver Coated Copper - 0.035
Dielectric Solid Polyethylene color natural 0.041 0.116
1st Shielding 95% Silver Coated Copper Braid - 0.146
2nd Shielding 94% Silver Coated Copper Braid - 0.175
Jacket PVC (Non-Contaminating Vinyl) 0.019 0.212
VALUE*
Conductor Resistance (Max./100 ft)- 0.9
Impedance (ohms) - 50
Capacitance (Max. pF/ft) - 32.2
Velocity of Propagation (%) - 66
Attenuation (Max. db/100 ft)50 MHz 4.8
400 MHz 12.0
1000 MHZ 21.0
5000 MHz 55.0
12400 MHz 92.0
SRL (Max db/100 ft) 0.5 GHz 25.0
2.0GHz 21.5
5.0 GHz 21.0
12.0 GHz 19.0
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables M17/84-Rg223, [Click Here] to Link to Manufacturer Web Site
