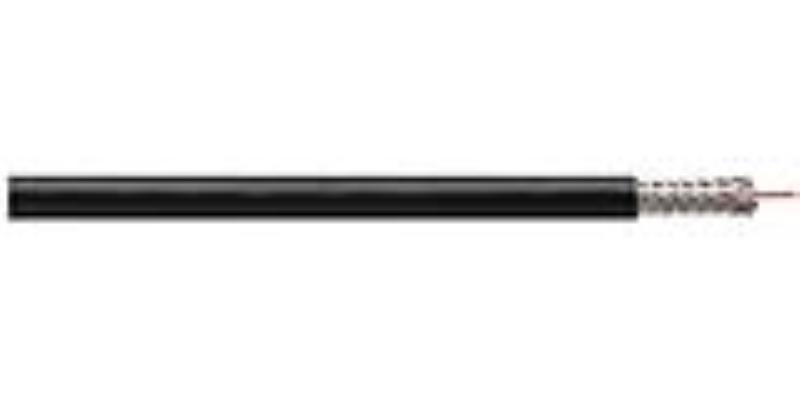

Coleman Cables M17/119-Rg174

988596

Coleman Cable - CCI

M17/119-Rg174
(click image to enlarge)
Quick Overview
    Features & Application:-
    • Manufactured in accordance with, tested & certified to individual Slant Sheets ie:(M17/028-RG058)
    • RoHS & REACH compliant insulating compounds
    • Test Reports with manufacturing lot for each & every cable
    • Certificate of Compliance with MIL-DTL-17
    • Made in the USA
    • High frequency RF antenna for ground support equipment
    • Radar systems & flight guidance equipment
    • Secure & cryptic aerospace communications
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details

Construction Parameters

Electrical Properties

Wall (in)* OD (in)*
Conductors 26 AWG (7/.0063) Copper Coated Steel (40% conductivity) - 0.019
Dielectric Solid Polyethylene color natural 0.021 0.06
1st Shielding 86% Tinned Coated Copper Braid - 0.078
Jacket PVC (Non-Contaminating Vinyl) 0.016 0.11
VALUE*
Conductor Resistance (Max./100 ft) - 9.67
Impedance (ohms) - 50
Capacitance (Max. pF/ft) - 32.2
Velocity of Propagation (%) - 66
Attenuation (Max. db/100 ft) 50 MHz6.5
100 MHz10.0
400 MHz25.0
1000 MHz45.0
SRL (Min: dB) 100 MHz23
500 MHz20
800 MHz19
1000 MHz19
Additional Information
Manufacturer: Coleman Cable - CCI
For More Information on the Coleman Cables M17/119-Rg174, [Click Here] to Link to Manufacturer Web Site
