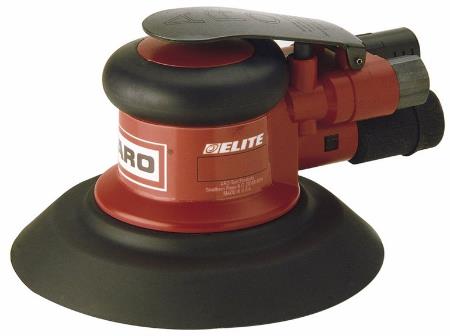

ARO Random Orbital Sanders

R035A-CSV

Ingersoll Rand

(click image to enlarge)
Quick Overview
    This series of orbital sanders features high efficiency air motors with reduced vibration, and quiet operation in a compact package.
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details
ModelR025B-CSV-1R025B-CLV-1R026B-CSV-1R026B-CLV-1R035A-CSVR036A-CSVR025B-CSV-2R025B-CLV-2R026B-CSV-2R026B-CLV-2
Rated Power hp (kW)0.2 (0.15)0.2 (0.15)0.2 (0.15)0.2 (0.15)0.3 (0.22)0.3 (0.22)0.2 (0.15)0.2 (0.15)0.2 (0.15)0.2 (0.15)
Max Free Speed (rpm)12,00012,00012,00012,00010,00010,00012,00012,00012,00012,000
Pad Diameter in. (mm)5" (125)5" (125)6" (150)6" (150)5" (125)6" (150)5" (125)5" (125)6" (150)6" (150)
Orbit Diameter in. (mm)3/16" (5)3/16" (5)3/16"3/16"3/16" (5)3/16"3/32" (2.5)3/32" (2.5)3/32" (2.5)3/32" (2.5)
Pad FaceVinylVinylVinylVinylVinylVinylVinylVinylVinylVinyl
Shroud StyleShortLongShortLongShortShortShortLongShortLong
HousingCompositeCompositeCompositeCompositeAluminumAluminumCompositeCompositeCompositeComposite
Weight lbs. (kg)1.83 (0.83)1.83 (0.83)1.92 (0.87)1.92 (0.87)2.4 (1.09)2.4 (1.09)1.83 (0.83)1.83 (0.83)1.92 (0.87)1.92 (0.87)
Length in. (mm)7" (178)7" (178)7.48" (190)7.48" (190)7" (178)7.48" (190)7" (178)7" (178)7.48" (190)7.48" (190)
Sound Pressure/Power dBA81.6 / N/A81.6 / N/A81.6 / N/A81.6 / N/A80.0 / N/A80.0 / N/A81.6 / N/A81.6 / N/A81.6 / N/A81.6 / N/A
Vibration m/s23.5, uncertainty: 1.53.5, uncertainty: 1.57.0, uncertainty: 2.27.0, uncertainty: 2.23.7, uncertainty: 0.94.3, uncertainty: 1.43.7, uncertainty: 1.53.7, uncertainty: 1.57.0, uncertainty: 2.27.0, uncertainty: 2.2
Air Inlet NPTF in.1/4"1/4"1/4"1/4"1/4"1/4"1/4"1/4"1/4"1/4"
Min Hose Size in. (mm)5/16" (8)5/16" (8)5/16" (8)5/16" (8)5/16" (8)5/16" (8)5/16" (8)5/16" (8)5/16" (8)5/16" (8)
Air Consumption @ Free Speed cfm (L/min)15.8 (447)15.8 (447)15.8 (447)15.8 (447)18.5 (524)18.5 (524)15.8 (447)15.8 (447)15.8 (447)15.8 (447)
Additional Information
Manufacturer: Ingersoll Rand
For More Information on the ARO Random Orbital Sanders, [Click Here] to Link to Manufacturer Web Site
