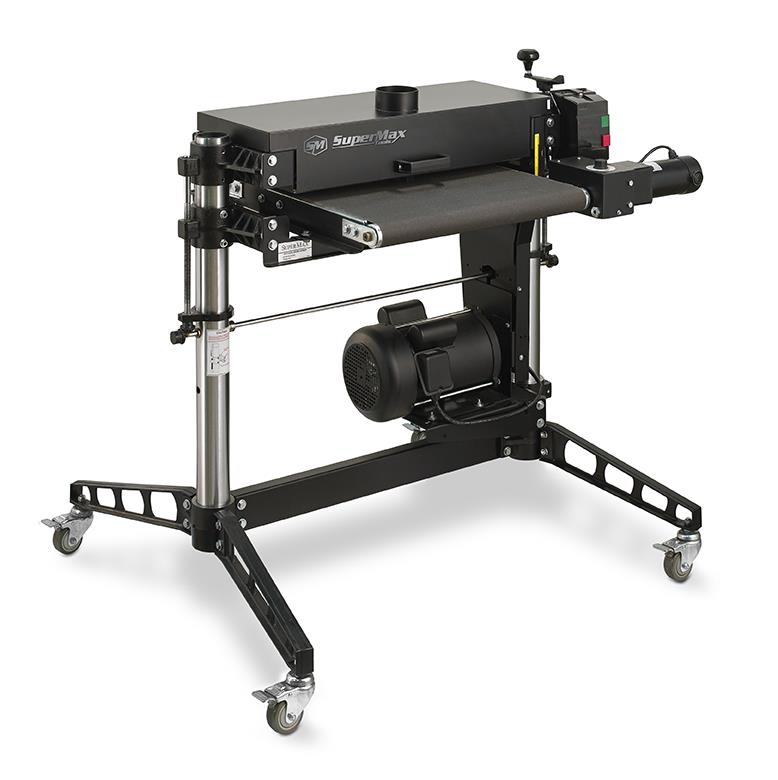

25x2 Double Drum Sander

25x2 Double Drum Sander

SuperMax Tools

(click image to enlarge)
Quick Overview
    • INTELLISAND Technology: Automatically adjusts conveyor speed based on load
      • Prevents gouging, damaging or burning stock
      • Provides consistent finish even with varying grain pattern and density
      • Greatly increases abrasive planing and dimensioning speed
    • Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010? across the width of the sander
    • Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
    • Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
    • Easiest access to abrasive fastening system of any drum sander! Machine design includes additional space around abrasive, eliminating the need for special tools.
    • Self-cooling drum prevents overheating and extends abrasive life
    • Drum ball bearing are sealed and permanently lubricated
    • Cast stand, zinc-plate steel bed, centerless ground column tubes

48WS.com LLC is a website development company. We do not sell products.

Are you a distributor interested in a free demo, or a manufacturer looking to have your products displayed in your distributors' online catalogs? Contact us at:

Phone: 657-777-3411
Email: sales@48ws.com

Details
Sanding Capacity: Maximum Width (in): 25
Minimum Length (in):  3-1/2
Maximum Thickness (in): 6
Minimum Thickness (in): 1/32
Dimensions HxWxD (in): 43 x 46 x 31
Drum (in): Extruded aluminum, 5 x 25
Drum speed: 1740 RPM
Dust Hood: Steel hood, hinged at back
25” model: one (1) 4” vacuum port, min. 1000 CFM recommended
Ball bearings (1”): 4, sealed and permanently lubricated
Conveyor Motor: 100 in.-lb. torque, direct drive D.C. motor, infinitely variable 0-15 FPM
Drive Motor (TEFC): 5 HP, 208-230V, 60HZ
Power Requirements: 1 PH, 30 amp service; 3 PH 20 amp service
Shipping Weight (lbs): 475
Additional Information
Manufacturer: SuperMax Tools
