80 Gallon – 3 Cylinder - Cast Iron - Industrial

DXCMLA4708065

DeWalt

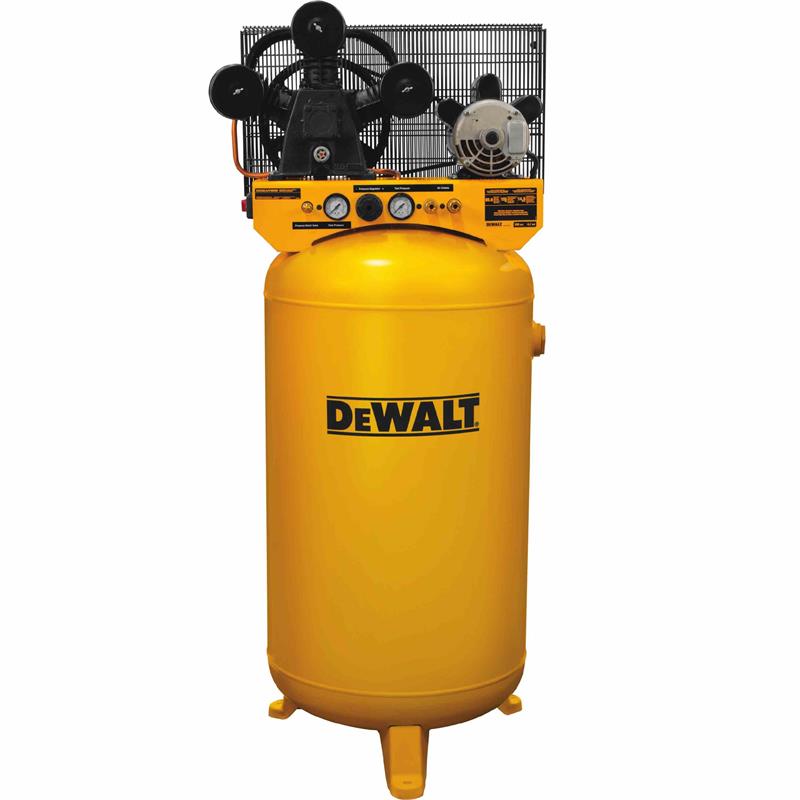

The DEWALT 80 Gallon Belt Drive Compressor features a cast iron, three cylinder, single stage, high-flow oil lubricated pump, a heavy duty 240 volt induction motor, and is shipped with synthetic oil.
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    Features & Specs

    FEATURES

    • High air flow, single stage; provides enough power to operate more than one air tool or device at one time
    • Cast iron, 3 cylinder, oil lubricated pumps
    • Heavy duty, 208-240 spread voltage, induction motor
    • Integrated control panel equipped with tank and working pressure gauges, air flow regulator, 2 QC air outlets, and a pressure relief valve
    • Uniquely designed metal belt guard improves compressor pump cooling by as much as 60 degrees F over other belt guard designs
    • Large capacity, 80 gallon ASME certified tank
    • Shipped with synthetic oil for optimum performance and long life
    • Equipped with tank pressure gauge and on/off switch

    Specifications

    • Drive Belt Drive
    • Horsepower 4.7 HP
    • Power Supply Gas
    • Pump Speed 1250 rpm
    • SCFM @ 100 PSI N/A
    • SCFM @ 175 PSI N/A
    • SCFM @ 40 PSI 16.1
    • SCFM @ 90 PSI 14.0
    • Tank Size 80 gal
    • Tool Height 77 in
    • Tool Length 31.5 in
    • Tool Weight 354 lbs
    • Tool Width 34.75 in
    Additional Information
    Manufacturer: DeWalt
