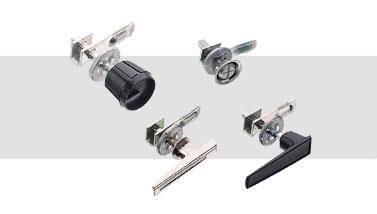

Universal Cabinet Series Latches

1-61

SouthCo

Economy and efficiency are the hallmarks of this versatile latch design for lightweight applications. Installation is simple, with single round-hole panel preparation and a press-fit retainer clip. Grip adjustment is quick and versatile, with set-screw positioning and long shaft options.
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    With these universal cabinet series latches, you simply choose your actuator style and shaft length and everything else is easy – installation, adjustment, and operation.

    • Easy to install, simply press retainer clip onto shaft assembly
    • Set screw on pawl permits easy grip adjustment in field, to maximum allowed by shaft length
    • Optional flush cup mount requires no special panel prep, simply anchor cups with retainer clip on shaft

    Available Options

    • Actuation options include steel L-handle, and slotted styles, and a thermoplastic knob style
    • Flush mount cup available for slotted style actuator
    • Retainer clip installation tool speeds and simplifies installation

    Standards and Specifications

    • Maximum working load is 110 N (25 lbs.)
    • Maximum grip for L-handle style is up to 32 mm (1.25")
    • Maximum grip for knob style is up to 44.5 mm (1.75")
    • Maximum grip for slotted style is up to 57 mm (2.25")

    Industry Applications

    • Appliance
    • Exhibits/Signs
    • Furniture
    • HVAC
    • Industrial Machinery, Machine tools, Metal Cutting
    • Lawn/Garden Equipment

    Additional Information
    Manufacturer: SouthCo
