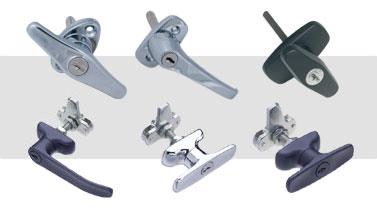

Compact and full-sized T-handle and L-handle designs provide substantial handhold for easy actuation and smooth operation of these easy-to-install and easy-to-operate latches. Multiple finishes, mounting styles, and cam configurations provide versatile choices to match the aesthetic and physical requirements of most applications.

• Slightly ramped feature on cam provides for tight grip against frame
• Simple installation using round holes for latch body and two mounting screws
• Adaptable for 1-, 2-, or 3-point latching
• Rear screw-mount styles provide cleaner look on front of door
• Countersunk screw-mounting styles provide easy mounting access from front of panel
• Keylocking styles come with standard CH751 keycode and two flat keys; additional keycodes available on request

Available Options

• Choice of short and long cams to suit different panel/frame configurations
• Separate models available for left-handed or right-handed operation
• Available in bright chrome plated or powder black finish
• All latch models available in both locking and non-locking styles

Standards and Specifications

• Series 92-20/30/40 short cam design provides maximum working load of 400 N (90 lbs.)
• Series 92-20/30/40 long cam design provides maximum working load of 200 N (45 lbs.)
• Series 92-50/60/70 with standard cam design provides maximum working load of ??? N (?? lbs.)
• Series 92-50/60/70 with reversed cam design provides maximum working load of ??? N (?? lbs.)

Industry Applications

• Automotive, Passenger Vehicles, Trucks
• Computers
• Construction Equipment, Off-Highway Vehicles, Farm Equipment
• Electronic Enclosures
• Food Equipment
• Industrial Enclosures
• Industrial Machinery, Machine Tools, Metal Cutting
• Lawn/Garden Equipment
• Telecommunications
