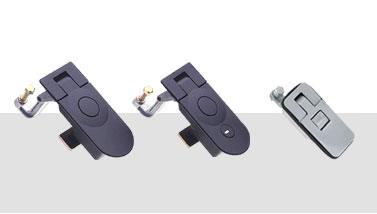

Streamlined looks and easy operation make this compression latch an ideal choice for highly visible installations requiring a secure, sealed fit. Compressive action pulls door tight without rubbing action or wear on pawl or frame.

• Push-button release pops handle up for convenient use
• For use in NEMA 4 and IP-66 applications when installed with optional flange gasket
• Mounting hardware accommodates a wide variety of door thicknesses
• Threaded adjusting screw and jam nut make it easy to provide necessary grip adjustments over time
• Rubber bumper model delivers enhanced compression with reduced vibration, wear, and noise
• Installs easily in single rectangular hole
• Stylish, flush-mount design means no protruding fasteners

Available Options

• Corrosion-resistant stainless steel mounting hardware is available for use in outdoor environments
• Available in chrome and black powder coat
• Available with and without key or tool-restricted access
• Sealing cover

Standards and Specifications

• NEMA 4 and IP-66 sealing is achieved by using environmental flange gasket and sealing mounting screw threads
• Maximum working load is 445 N (100 lbs.)
• Provides from 12 mm to 16 mm (.48" to .63") grip-range adjustment

Industry Applications

• Automotive/Trucks
• Computers,
• Construction Equipment, Off-Highway, Farm Equipment
• Electronic Enclosures
• Exhibits./Signs
• Food Equipment
• HVAC
• Industrial Enclosures
• Industrial Machinery, Machine Tools, and Metal Cutting
• Lawn/Garden Equipment
• Marine
• Networking
• Railway
• Telecommunications
• Vending Machines
