The smooth operation of the VISE ACTION® design aligns the pawl behind the frame and draws it up tight with a single continuous half-turn motion. Its compression action provides consistent 6.4 mm (.25") pull-up for environmental sealing in gasketed applications, and helps reduce or eliminate noise and rattles caused by vibration. Over-center latching resists accidental opening due to shock or vibration.

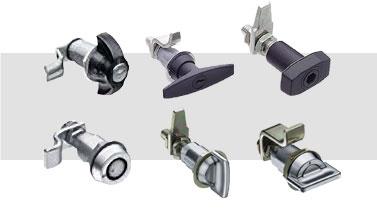

• Six body styles accommodate various door/panel thicknesses, grip ranges, actuator styles, and interior protrusion
• Easy-to-grip knob and handle-actuated styles provide quick, simple access
• More than 45 key-actuated and tool-actuated styles restrict access and discourage vandalism
• Low-profile and flush-mount styles minimize protrusion above panel
• Available in fixed-grip and adjustable grip versions
• Many models suitable for NEMA 4 and IP-65 applications
• Single-hole mounting styles provide for convenient installation

Available Options

• Available in a range of materials and finishes, including: stainless steel, chrome plated, or black powder coated
• Assembled versions facilitate quick and easy installation; unassembled versions are available for mounting in thicker doors and other restricted access situations
• Models available to accommodate 2- and 3-point compression latching
• Lightweight, hard anodized aluminum version complies with EN45545

Standards and Specifications

• Appropriately gasketed models satisfy NEMA 4 and IP-65 applications
• Models available for EMI/RFI sealing

Industry Applications

• Rail
• Aerospace
• Bus & Coach
• Specialty Vehicle
