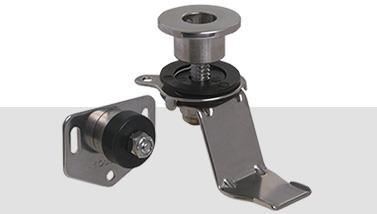

Marine-grade construction and sealed design provide durable watertight performance. Removable handle design is ideal for engine compartments, other enclosures, and screw-mounted access panels because it offers easy access, yet presents a near-flush exterior surface when closed.

• CF-8M (the cast equivalent of 316 SS) and 304 SS construction with nylon roller delivers corrosion-resistant performance for marine applications
• Roller-style keeper engages cam smoothly and draws panel firmly into a fully closed position
• Ramped cam edges position the cam on the roller for a snug fit and vibration resistance
• Removable push-button T-handle locks in place with a detent ball to provide ample grip for easy operation and disengages easily to provide a near-flush exterior surface and to function as a key for restricting access only to authorized personnel
• Ability to disengage latch from inside provides safety backup to anyone accidentally caught inside an enclosure
• Installs quickly and easily in a single round hole

Available Options

• Available with beveled edge or straight edge guide ring
• Push-button removable T-handle is sold separately

Standards and Specifications

• Maximum static load: 160 N (3.6 lbs.)
• T-handle pull-out force: 2200 N (495 lbs)
• Accommodates panel thicknesses from 0.5" to 0.75" (12.7 mm to 19.05 mm)

Industry Applications

• Boat Builders
• Marine Distributors
• Industrial Equipment
• Marine
