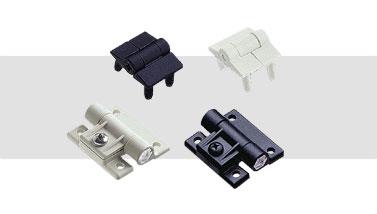

Adjustable Torque Position Control Hinges

1-E6

SouthCo

Allow users the flexibility to define and adjust the operating effort required to move or position panels. E6 hinges provide infinite control over door positioning and accommodate variables in enclosure construction - without added hardware or installation costs. Aesthetic designs and concealed mounting hardware options provide a clean presentation.
(click image to enlarge)
Quick Overview

    48WS.com LLC is a website development company. We do not sell products.

    Are you a distributor interested in a free demo, or a manufacturer looking to have your products displayed in your distributors' online catalogs? Contact us at:

    Phone: 657-777-3411
    Email: sales@48ws.com

    Details

    With the turn of a screw, these hinges allow users to define the level of resistance. Once adjusted, the positioning torque stays consistent throughout the full range of motion and will hold doors steady in any position.

    • User-adjustable operating effort
    • Corrosion-resistant materials
    • Ability to conceal mounting hardware

    Available Options

    • Three size options provide different torque levels to accommodate a range of requirements
    • Available in black or white; other colors may be ordered to complement customer applications
    • Mounting options include thru-hole mounting or thread-stud mounting

    Standards and Specifications

    • Minimum cycle performance: 20,000 cycles within ± 20% of static torque specification
    • Operating temperature range: -5°C(20°F) to 65°C(150°F)

    Industry Applications

    • Aerospace
    • Bus
    • Construction Equipment, Off-Highway Vehicles, Farm Equipment
    • Electronic Enclosures
    • Exhibits/Signs
    • Food Equipment
    • Furniture
    • HVAC
    • Industrial Enclosures
    • Industrial Machinery, Machine Tools and Metal Cutting
    • Lawn/Garden Equipment
    • Marine
    • Medical

    Additional Information
    Manufacturer: SouthCo
