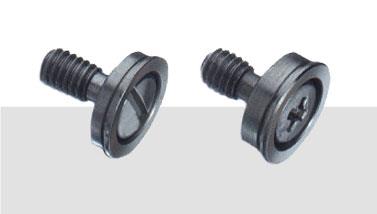

Flush Captive Screws

1-F5

SouthCo

Deliver captive screw solutions for applications where there is minimal space above the face of the panel, or where a flush-mount look is desired, by using this low-profile shell and mounting screw. For use in most aluminums or in low-carbon steels that are 1/4 hard or softer.
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details

    Flush mount screws install in panels as thin as 1.3 mm (.05"). Screw fastens into a threaded insert or other threaded receptacle.

    • Flush when fastened
    • Screw retention method prevents removal of screw from captivated shell
    • Installs in one step as a self-clinching assembly, no secondary installation procedures required
    • All stainless steel construction provides corrosion resistance
    • Screws float 0.5 mm (.02") total movement to provide some play for easier alignment

    Available Options

    • Available in multiple standard thread sizes and screw lengths to suit application requirements - including M3, M4, 4-40, 6-32, 8-32
    • Available with choice of slotted or Phillips recess actuation

    Industry Applications

    • Aerospace
    • Computers
    • Electronic Enclosures
    • Exhibits/Signs
    • Food Equipment
    • HVAC
    • Medical
    • Networking
    • Telecommunications
    • Vending Machines

    Additional Information
    Manufacturer: SouthCo
