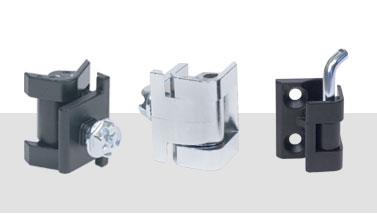

With the frame leaf bolted to the enclosure frame, the formed door leaf simply fits into a stamped hole in the corner bend of the door panel. It is held in place by a small detent and a hinge pin that marries the two hinge leaves together and compresses the door leaf against the door panel.

• Fits virtually flush into the return bend of formed sheet metal doors, for a clean look with no protruding hardware
• Durable die-cast metal construction
• Sizes available to fit sheet metal panels from 1 mm (.04") to 2 mm (.08") thick
• Single-hole (T1 and T2) styles mount with a single machine screw inserted through frame into the threaded base
• Two-hole (V2) style mounted with user-supplied M6 nuts and machine screws supports a higher working load
• Removable hinge pins provide for easy door removal for maintenance and service access
• A new smaller, black nylon version of the KH series corner mount hinges is now being offered

Available Options

• Removable hinge pins on T1 and T2 models are available in choice of acetal or steel materials

Standards and Specifications

• KH-Class hinges provide maximum axial and radial working loads ranging from 1200 N (270 lbf.) to 3000 N (675 lbf.)

Industry Applications

• Computers
• Electronics Enclosures
• Industrial Enclosures
• Industrial Equipment
• Industrial Machinery
• Networking
• Telecommunications
