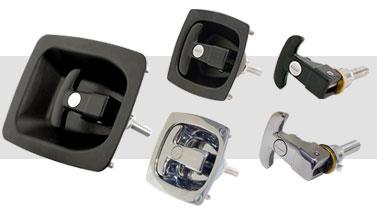

From its solid stainless steel shaft to its easy-to-grip T-handle, this rugged latch is designed to operate reliably in heavier duty applications. Its intuitive lever-action mechanism generates sufficient compression to hold doors snug and rattle-free, despite the vibration of heavy diesel engines or the shocks of rough terrain.

• Available in multiple sizes to provide the strength, grip, and appropriate pull-up compression for a large variety of door sizes
• 6 mm (.24") of consistent pull-up compression provides a snug fit to dampen vibration, minimize noise
• Multiple pawl options and adjustments accommodate a broad range of relative door-to-frame dimensions
• N2 with standard cup size utilizes same simple panel prep as Southco N4 latch, for easy drop-in replacement

Available Options

• Available with a recessed cup that keeps folded handle below the surface of the door
• Also available in both locking and non-locking styles
• Easily configurable with custom keycodes and colors
• Stainless steel version for corrosion resistance and harsh environments
• Straight and offset pawl options satisfy grip dimensions ranging from 2.5 to 104 mm (0.10” to 4.10")
• Under customer request we have available a medium and large size cup as well as a M16 shaft for heavier duty applications

Standards and Specifications

• Maximum working load in powder coated versions: 1000 N (225 lbs.)
• Maximum working load in stainless steel versions: 1800 N (405 lbs.)
• Fits door panels from 1.5 mm to 2.5 mm thick (T-handle no cup version) and up to 12.7 mm thick (recessed cup version)

Industry Applications

• Off-Highway Equipment
• Trucks
• Emergency Vehicles
• Tow Trucks
• Military Vehicles
• Gensets
• Railway
• Industrial Equipment
