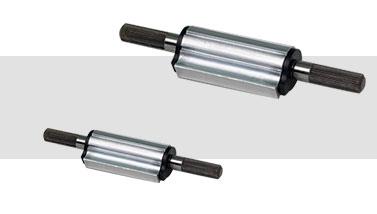

The ST-8P and ST-11P deliver a customizable, validated solution with consistent results. The specific installation requirement of an injection mold makes the mechanism especially practical for high volume applications, new designs and design refreshes.

• Simple integration of constant torque functionality into injection molded products
• Overmolded design reduces total product cost and provides aesthetic value
• Long cycle life ensures reliability and reduced maintenance costs
• Slim diameter for ease of use and flexibility of design
• Customizable torque to fit the needs of most applications
• Available in two sizes to accommodate a range of requirements

Available Options

• Multiple size options provide different load and torque ratings to accommodate a range of requirements
• Can be specified with either symmetric torque or asymmetric torque to control the operating effort in both directions
• Contact Southco for additional torque ranges, colors, and finishes

Standards and Specifications

• Positioning torques from 0.35 kg-cm (0.3 in-lbf) to 50.7 kg-cm (44 in-lbf)
• Maximum working loads from 200N (45 lbf) to 1,000 N (225 lbf)
• Cycle performance up to 20,000 cycles within +20% of static torque specification

Industry Applications

• Aerospace
• Appliance
• Automotive Passenger Vehicles and Trucks
• Cases
• Construction Equipment, Off-Highway Vehicles, Farm Equipment
• Electronic Enclosures
• Exhibits/Signs
• Food Equipment
• Furniture
• HVAC
• Industrial Enclosures
• Industrial Machinery, Machine Tools and Metal Cutting
• Lawn/Garden Equipment
• Marine
• Medical
• Networking, Telecommunications, Computer
• Railway
• Vending Machines
