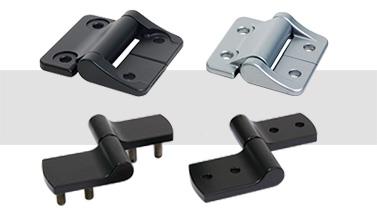

The E6 /  ST class eliminates the need for secondary supports to hold hinged components in position.

• Preset in our manufacturing facility and never requires adjustment
• Zero-drift and backlash, even under vibration or dynamic loads
• Robust construction suitable for indoor and outdoor use
• Multiple size and torque ratings to accommodate a range of load requirements
• Easy integration and simple installation without added cost

Available Options

• Wide range of styles available including an abrasion resistant satin chrome finish
• Thru-hole and rear/concealed mounting options
• Available in multiple colors and finishes to match application designs
• Available with asymmetric torque for easy lifting operation
• Contact Southco for additional torque range, color and finish possibilities

Standards and Specifications

• Long-lasting hinges are rated to stay within ±20% of rated torque value for 20,000 cycles
• Hinge resistance ranges up to 12.4N.m (110 in-lbf)
• Operating temperature range: -20°C to 65°C (-4°F to 150°F)

Industry Applications

• Aerospace
• Automotive Passenger Vehicles and Trucks
• Construction Equipment, Off-Highway Vehicles, Farm Equipment
• Electronic Enclosures
• Exhibits/Signs
• Food Equipment
• Furniture
• HVAC
• Industrial Enclosures
• Industrial Machinery, Machine Tools and Metal Cutting
• Lawn/Garden Equipment
• Marine
• Medical
• Networking, Telecommunications, Computer
• Railway
• Vending Machines
