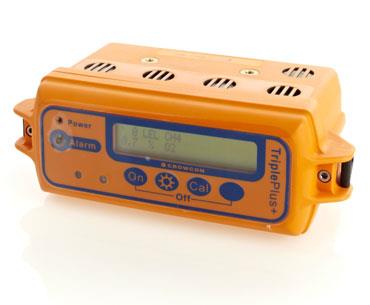

Triple Plus+ is the latest generation of the respected "Triple" family of toxic, oxygen and flammable gas detectors. With over 90,000 units sold to oil and gas, chemical, utility and manufacturing companies worldwide, their combination of ruggedness, reliability, ease of use and sensor flexibility has set the standard for multigas portables.

(click image to enlarge)

Quick Overview

Overview

Today's TriplePlus+ builds on this pedigree by inclusion of unique LIBRA lithium-ion battery technology and the option of infrared (IR) sensors for the measurement of flammable hydrocarbons or carbon dioxide.

Intrinsically safe, the Triple Plus+ provides enhanced facilities for safety and detector fleet managers including selection of flammable gas correction factors (so one unit can be used in several locations across a site) and annotation of the data file with user names and site names selected from pre-configured files in the unit.

IR option
IR sensors have very high resistance to interference or inhibition by other gases and are suitable for both high gas concentrations and use in inert (oxygen free) backgrounds where catalytic pellistor sensors would perform poorly.

The unique design of the Crowcon IR sensor module used in Triple Plus+ IR allows measurement of hydrocarbons at both %LEL and % volume ranges making this instrument ideal for tank and line purging applications.

No poisoning effects - works well where catalytic pellistors would perform poorly
Long life sensor and no burnout - reduced cost of ownership
% vol. measurement for purging applications - offers flexibility
% LEL measurement in air or inert backgrounds
Single or dual range measurement
IR CO2 detection, 0-5%

Clear and unambiguous

Piercing 85dB alarm at 1m - gives you confidence in the status of your Triple Plus+, and the environment you're working in
Vivid LED alarms with top visibility
Confidence blip, low battery and TWA warnings
Timed data logging with 100-hour capacity

Simple to customise

Wide range of electrochemical oxygen and toxic gas sensors - allows you to create your optimum 4 gas Triple plus+
Available for diffusion, manual aspiration or pumped sampling
Interchangeable sensor modules
Comprehensive data logging with site and user names

Durable

Triax^TM casing will not crack or shatter when dropped - system integrity and operation assured
Unique internal design will resist the harshest treatment
Full buoyancy - makes recovery from water possible

Easy to maintain

Simple Windows^TM Software interface - user menus allow calibration with or without connecting to a PC
QuickCal for rapid calibration

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Size	118 x 200 x 73mm (4.65 x 7.8 x 2.9ins)
Weight	880g gas (31oz)
Alarms	Piercing, rapid intermittent, piezo-electric tone 85 dB at 1 m Confidence blip (selectable) Distinctive double blip for low battery with user accept Gas hazard: vivid flashing red LED Instrument is working: slow flashing green LED Low battery: distinctive double flash of green LED
Display	2 lines of 24 characters, dot matrix high contrast LCD with back light operating for 30 minutes Values and units for up to 4 gases displayed simultaneously at current, TWA or peak levels Low battery, pump failure, real time and elapsed time, calibration and configuration data also displayed
Data logging	Adjustable sample rate, 100 hours at 1 minute sample rate (maximum 6000 data points per channel), logging of events, user and site
Battery	Rechargeable Li-ion batterypack Standard instrument >12 hours Pumped instrument >10 hours Charging: Dual rate drop-in charger; Dual rate charger/PC interface
Expected sensor life	Flammable: 5 years (Triple Plus+) IR: 5 years (Triple Plus+ IR) Toxic: 3 years Oxygen: 2 years
Typical response times	Methane 20s (Triple Plus+) IR 20s (Triple Plus+IR), Oxygen 10s, typical Toxic Gas 20s
Sampling	Optional internal electric pump with on/off button
Operating temperature	-20°C to +50°C (-4°F to 122°F)
Humidity	20 to 90% RH non-condensing
Ingress protection	IP65
Approvals	Europe: ATEX II 2G: Ex ib d IIC T4 Gb North America: Class I Division 1, Groups A, B, C and D
Safety standards	Europe: EN50014, EN50020, EN50081-2, EN50270, EN50082-2 North America: UL 913, CSA 22.2 No.157 (SFA3009 Triple Plus+)
Calibration	Tetra can be routinely calibrated manually using the menu, using Crowcon Protables PC software or automatically using Checkbox IMH.
Accessories	Standard: Manual, shoulder strap and allen keys (pumped units include additional flow plate, 2m hose and pouch) Optional: Leather carry case, straight and telescopic probes, water trap, baffle plate, aspirator, calibration flow adaptor and hose
