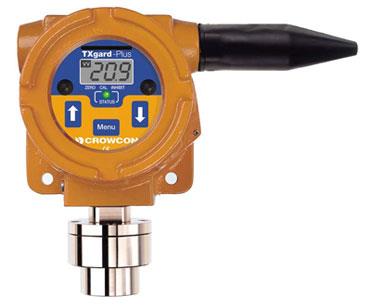

TXgard Plus is a flameproof (Ex d), ATEX and UL certified toxic or oxygen gas detector with local LCD display. A choice of sensors are available enabling use in a wide range of applications, including water treatment, oil and gas exploration, chemical plants and steel production.

(click image to enlarge)

Quick Overview

Non-intrusive calibration

Calibration can be performed locally without the need for hot work permits - minimises operational down-time
Local display and buttons enable calibration without opening the junction box

Flexible output options

4-20mA current sink or source - works with a wide selection of control panels
3 wire format
Optional relays for alarm and fault - can be used for switching local alarms

Rugged and reliable

Constructed using marine-grade aluminium with a stainless steel sensor housing - proven track record for operation in the harshest environments
Ingress protection to IP65 as standard

Low cost of ownership

Non-intrusive one man calibration - easy to operate and maintain
Long life sensors - keeps interuption to on-site activity to a minimum
Simple parts replacement

Wide range of sensors

Carbon Monoxide, Hydrogen Sulphide and Oxygen range of electrochemical sensors available

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Size	200 x 115 x 115mm (7.9 x 6.1 x 6.1ins)
Weight	2.2kg (4.9lbs)
Ingress protection	IP65
Enclosure material	Junction box: Marine grade alloy Sensor housing: 316 stainless steel
Power	10-30Vdc, 210mA max (relay version) 160mA max (non relay)
Cable entries	2 x M20 or 1/2” NPT
Operating temperature	-10°C to +55°C (-14°F to 131°F) *
Humidity	15 to 90% RH non-condensing
Relays (optional)	SPNO or SPNC contacts rated 30Vdc 1A (non-inductive load) for Alarm 1, Alarm 2, Fault
Display	3-digit LCD back-lit display, LED status indicator
Calibration method	Via magnetically operated buttons
Electrical output	3 wire 4-20mA, sink or source
Terminals	Suitable for up to 1.5mm2 cable
Sensor type	Electrochemical
Repeatability	+/- 2% FSD typically
Zero drift	+/- 2% FSD, 6 months typically
Response time	Contact Crowcon for a full list of sensor response times
Performance	Tested in accordance with EN60079-29-1
Hazardous area zones	Zone 1 or 2
Approvals	Ex II 2 G Exd IIC T6 Gb UL Class I Zone 1
EMC compliance	EN 50270, FCC, ICES-003
