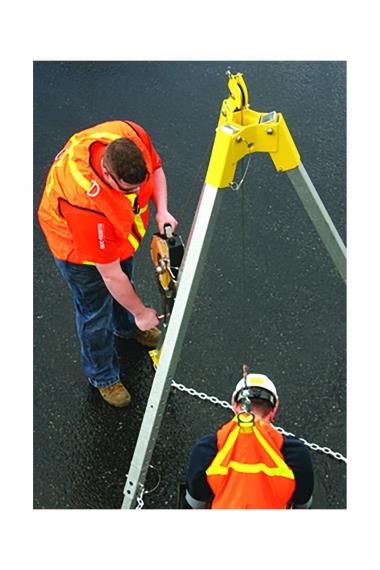

The Guardian Fall Protection Arc-O-Pod is an affordable, high quality Rescue and Retrieval system. The Arc-O-Pod is a 90-inches aluminum tripod that is lightweight, portable, and easily set up by just one worker. It also includes a storage bag for easy transportation between jobsites. Its adjustable, locking legs can be sized in 2 inch increments to best fit the layout of a given work area, and are kept in position with locking push pins. The tripod can be sized to fit a maximum 5—1/2 foot diameter hole, and is specially designed to eliminate all risk of slippage or movement when in use. Its heat-treated cast aluminum head incorporates a built-in pulley system to facilitate the proper use of mechanical lifeline equipment, and is also equipped with drop forged steel eyebolts for use as an anchorage point for a secondary or back-up system. The Arc-O-Pod also comes complete with a quick-mount bracket compatible with the Guardian 3-Way SRL. This system is certified to withstand a load of up to 5,000 pounds, and is compliant with all applicable ANSI Z359.1-2007, ANSI A10.14-2004, and OSHA regulations.

(click image to enlarge)

Quick Overview

High quality, 90-inch (max height) aluminum tripod that incorporates a variety of upgraded features
Lightweight & portable
http://www2.guardianfall.com/l/32862/2015-05-01/cdp6h/32862/108444/85083__Rev._C__15030_Arc_O_Pod_small.pdf
http://www2.guardianfall.com/l/32862/2015-05-01/cdp6m/32862/108446/15030_Arc_O_Pod_cutsheet__Rev._B_.pdf
http://bit.ly/217mJH1
ANSI Z359.1-07, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910
Metal

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Part #:

15030

Feature 1	High quality, 90-inch (max height) aluminum tripod that incorporates a variety of upgraded features
Feature 2	Lightweight & portable
Instructions	http://www2.guardianfall.com/l/32862/2015-05-01/cdp6h/32862/108444/85083__Rev._C__15030_Arc_O_Pod_small.pdf
Tech Sheet	http://www2.guardianfall.com/l/32862/2015-05-01/cdp6m/32862/108446/15030_Arc_O_Pod_cutsheet__Rev._B_.pdf
Sell Sheet	http://bit.ly/217mJH1
Applicable Standards	ANSI Z359.1-07, ANSI A10.32-12, OSHA 1926 Subpart M, OSHA 1910
Material	Metal
