Our product offerings may change from time to time, and certain products may have been rebranded. Please see the list below for select legacy products. If you are curious about the status of these products, or would like current recommendations for similar products, please contact us.

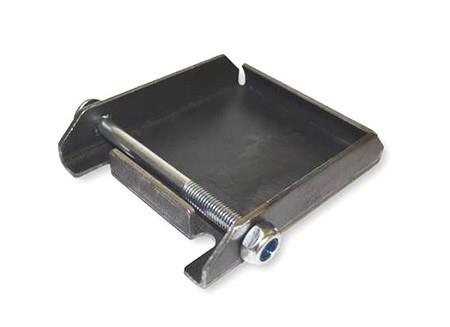

Quick-Change Caster Pad

Change top plate casters quickly and easily with Colson’s Quick-Change Caster Pad. Simply weld the caster pad to your equipment and securely fasten the caster using one nut and bolt. The caster pad is for use with most 4? x 4-1/2? top plate casters, and the rugged carbon steel construction is un-plated for safe and easy welding. To order, specify part number 10022.02.

Axle Kits

Caster Series	Part Number	Axle Dia. X Length (Inches)
1 SERIES (145 lb. cap.) / Less Brake	05954.36	5/16 x 1-1/2
1 SERIES (145 lb. cap.) / With Brake	05954.07	5/16 x 1-5/8
2 SERIES / Less Brake	05954.12	3/8 x 2-3/32
2 SERIES / With Zerk Axle With Total Lock Brake	05954.64	3/8 x 2-3/16
2 SERIES / With Zerk Axle Less Brake	05954.69	3/8 x 2-3/32
3 SERIES / Less Brake	05225.52	3/8 x 2-1/2
3 SERIES / With Zerk Axle	05954.65	3/8 x 2-1/2
3 SERIES / With Brake	05954.63	3/8 x 2-3/4
4 SERIES / 2-1/2? Leg Spacing	05953.76	1/2 x 3-3/8
4 SERIES / With Metal Brake	05944.20	1/2 x 3-9/16
4 SERIES / With TECH-LOCK Brake	05944.20	1/2 x 3-9/16
4 SERIES Stainless Steel	05214.22	1/2 x 3-3/8
4 SERIES / 2-1/2? Leg Spacing	05953.76	1/2 x 3-3/8
4 SERIES Stainless Steel / With Brake	05214.23	1/2 x 3-5/8
6 SERIES / 2-1/2? Leg Spacing	05953.76	1/2 x 3-3/8
6 SERIES / 2-1/2? Leg Spacing With Brake	05944.20	1/2 x 3-9/16
6 SERIES / 3? Leg Spacing	05944.44	1/2 x 4
7 SERIES	05960.07	3/4 x 4-3/4
7 SERIES / 7.04609 Only	05953.84	1 x 6-1/2
8 SERIES	05960.07	3/4 x 4-3/4

Spanner Bushings

Wheel Models	Part Number	Spanner Bushing I.D. x O.D. x Length (Inches)
1 SERIES / 441 & 53 Wheels	58020.04	5/16 x 7/16 x 1-7/64
2 SERIES / 12 Wheels	57442	3/5 x 5/8 x 1-1/2
2 SERIES / 309, 319 Wheels	57206	3/8 x 5/8 x 1-17/32
2 SERIES / All Delrin Bearing Models	52008.43	3/8 x 1/2 x 1-1/2
3 SERIES / All Roller and Delrin Bearing Wheels	55000.17	3/8 x 3/4 x 1-7/8
3 SERIES / 1-5/8? Hub Length Wheels	55000.18	5/8 x 3/4 x 1-7/8
4, 5, 6 SERIES / 1-1/2? tread width Roller and Delrin Wheels	55000.04	1/2 x 3/4 x 1-7/8
4, 5, 6 SERIES / All Roller and Delrin Bearing Wheels	52000.08	1/2 x 3/4 x 2-7/16
4, 5, 6 SERIES / 2-3/16? Hub Length Wheels	55000.19	5/8 x 3/4 x 2-7/16
6 SERIES / All Roller Bearing Wheels with 2-3/4? Hub Length	55000.27	1/2 x 3/4 x 3
7 SERIES / All Roller and Delrin Bearing Wheels	52001.61	3/4 x 1 x 3-1/2
8 SERIES / All 3-1/4? Hub Length Roller Bearing Wheels	52001.62	1 x 1-1/4 x 3-9/16

Thrust Washers

Note: O.D. is larger than retainer washer, but I.D. is the same.

Wheel Models	Part Number	Thrust Washer I.D. x O.D. x Thickness (Inches)
4 SERIES / All Sealed 1-1/2? Tread Width Roller Bearing Wheels	50116.03	3/4 x 1-1/2 x 3/16
4, 5, 6 SERIES / All Roller Bearing Wheels	50116.03	3/4 x 1-1/2 x 3/16
4, 5, 6 SERIES / All Roller Bearing and Plain bore Wheels	52000.09	2-5/8 x 1-1/2 x 3/32
4 SERIES / 1-1/2? Tread Wheels, Spacer to be used with 2-1/2? Forks	57030.66	3/4 x 1-7/16 x 9/32
6 SERIES / All Roller Bearing Wheels With 2-3/4? Hub Length	50116.03	3/4 x 1-1/2 x 3/16
7 SERIES / 4? Diameter Roller Bearing Wheels	52005.89	1-1/4 x 3-1/16 x 7/64
7 SERIES / All Roller & Delrin Bearing Wheels	52005.88	1 x 2-7/16 x 5/64
8 SERIES / All 3-1/4? Hub Length Roller Bearing Wheels	52005.87	1-1/4 x 2-7/16 x 7/64

Retainer Washers

Wheel Models	Part Number	I.D. x O.D. x Thickness (Inches)	For Use with Roller Bearing No.
2 SERIES	52008.61	21/32 x 1-1/16 x 3/32	52007.93
3 & 4 SERIES	50116.03 (Combination seal/retainer)	3/4 x 1-1/2 x 3/16	55000.05
5 SERIES	50116.03 (Combination seal/retainer)	3/4 x 1-1/2 x 7/32	55000.23
6 SERIES	50116.03 (Combination seal/retainer)	3/4 x 1-1/2 x 3/16	55000.06
3, 4, 5, 6 SERIES	52006.79 (Metal)	3/4 x 1-3/16 x 1/8	All Roller
7 SERIES	52005.70	1-1/32 x 1-15/16 x 1/8	52001.96
7 SERIES	5953.62 (Sealed)	1 x 1-15/16 x 1/8	52001.96
7 SERIES	52005.87	1-1/4 x 2-7/16 x 7/64	52001.97
8 SERIES	52005.69	1-9/32 x 1-15/16 x 1/8	52002.02

(click image to enlarge)

Quick Overview

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Colson Caster
