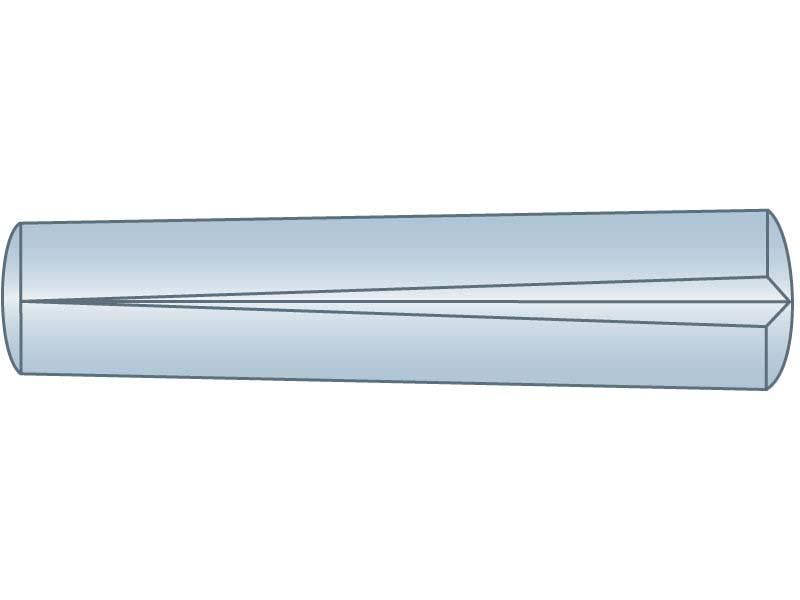

Groove Pin 3/32 x 1/2 Type A ZC

GP-0093-0500-A

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.001
    Brand:
    Driv-Lok
    Double Shear Strength Minimum:
    890 lbs
    End Radius:
    .1350"
    Expanded Diameter Maximum:
    .1030"
    Expanded Diameter Minimum:
    .0990"
    Expanded Diameter Nominal:
    .1010"
    Finish:
    Zinc Clear
    Inch or Metric:
    Inch
    Manufacturer Part Number:
    F01272
    Material:
    Low Carbon Steel
    Outside Diameter Maximum:
    .0938" (3/32)
    Outside Diameter Minimum:
    .0923"
    Outside Diameter Nominal:
    .0938" (3/32)
    Overall Length Maximum:
    .5100"
    Overall Length Minimum:
    .4900"
    Overall Length Nominal:
    .5000" (1/2)
    Specification:
    ASME B18.8.2
    Type:
    Type A

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.
