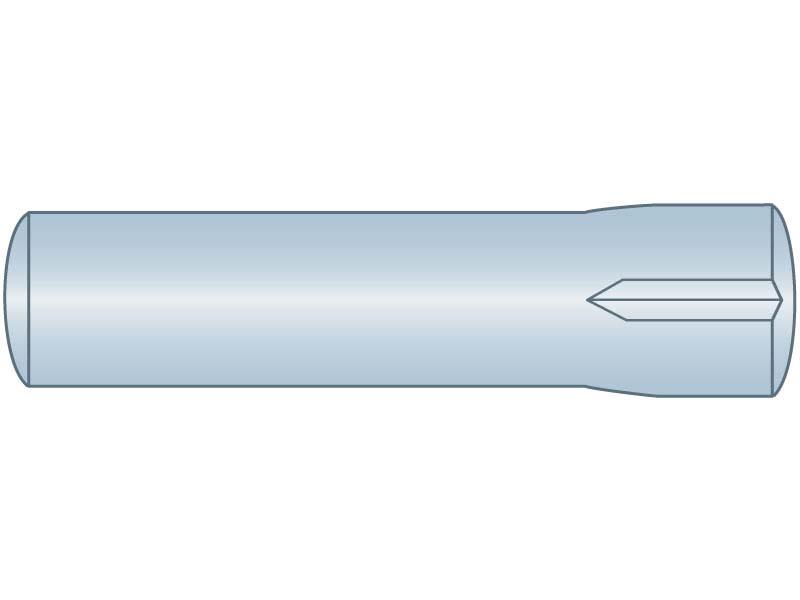

Groove Pin 1/16 x 3/8 Type C ZC

GP-0062-0375-C

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.0003
    Brand:
    Driv-Lok
    Double Shear Strength Minimum:
    410 lbs
    End Radius:
    .0680"
    Expanded Diameter Maximum:
    .0695"
    Expanded Diameter Minimum:
    .0665"
    Expanded Diameter Nominal:
    .0680"
    Finish:
    Zinc Clear
    Groove Length:
    .0938" (3/32)
    Inch or Metric:
    Inch
    Manufacturer Part Number:
    F01293
    Material:
    Low Carbon Steel
    Outside Diameter Maximum:
    .0625" (1/16)
    Outside Diameter Minimum:
    .0610"
    Outside Diameter Nominal:
    .0625" (1/16)
    Overall Length Maximum:
    .3850"
    Overall Length Minimum:
    .3650"
    Overall Length Nominal:
    .3750" (3/8)
    Specification:
    ASME B18.8.2
    Type:
    Type C

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
