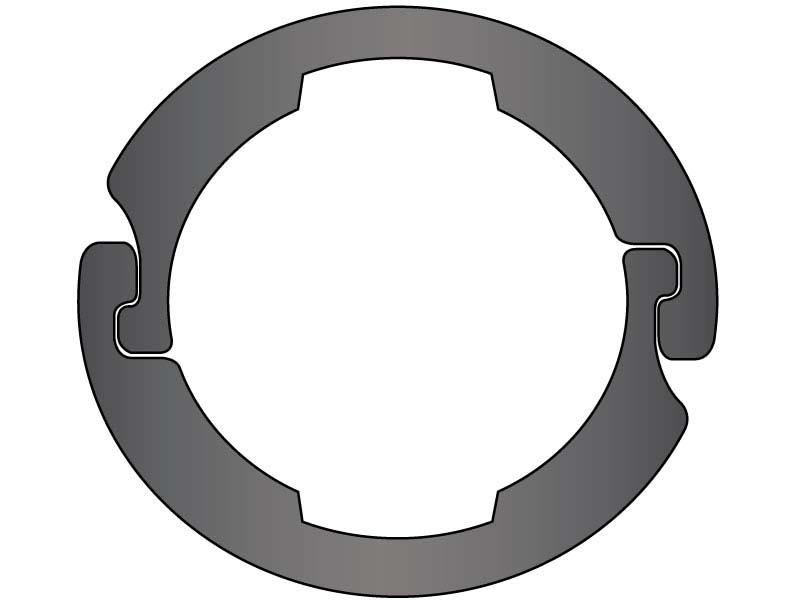

External Interlocking Ring 2" PH

LC-200

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.032
    Allowable Corner Chamfers:
    .088
    Allowable Corner Radii:
    .114
    Brand:
    Rotor Clip
    Clearance Diameter Released in Groove:
    2.400
    Edge Margin:
    .258
    Finish:
    Phosphate
    Free Diameter Tolerance:
    ±.006
    Free Inside Diameter:
    1.809
    Groove Depth:
    .086
    Groove Diameter:
    1.828
    Groove Diameter to Shaft Concentricity:
    .005
    Groove Diameter Tolerance:
    ±.005
    Groove Width:
    .086
    Groove Width Tolerance:
    +.005 / -.000
    Hardness:
    HRC 47-52
    Inch or Metric:
    Inch
    Manufacturer Part Number:
    LC-200ST PA
    Material:
    Carbon Spring Steel
    Maximum Section:
    .262
    Maximum Section Tolerance:
    ±.007
    Maximum Thrust Load:
    3050 lbs
    Shaft Diameter:
    2"
    Style:
    Stamped
    Thickness:
    .078
    Thickness Tolerance:
    ±.003
    Type:
    Interlocking Ring - Ext

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
