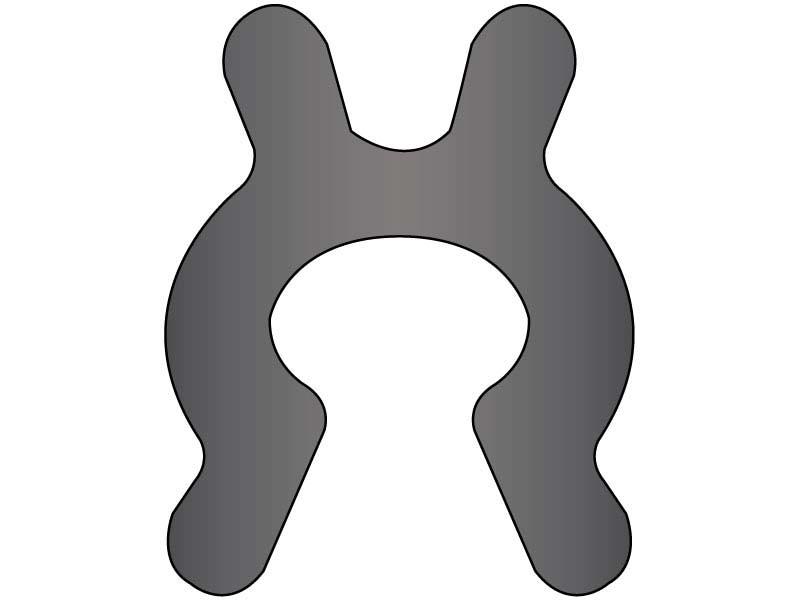

X-Ring Retainer 5/8" ZC

XRING-0625

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.0099
    Clearance:
    .609
    Closed Diameter Maximum:
    .327
    Closed Diameter Minimum:
    .307
    Closed Diameter Nominal:
    .317
    Finish:
    Zinc Clear
    Fits Shaft Size:
    5/8"
    Inch or Metric:
    Inch
    Inside Diameter Maximum:
    .322
    Inside Diameter Minimum:
    .312
    Inside Diameter Nominal:
    .317
    Material:
    Spring Steel
    Overall Length Maximum:
    1.105
    Overall Length Minimum:
    1.095
    Overall Length Nominal:
    1.100
    Thickness Nominal:
    .089

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
