Atlas Web Technologies CGF substrate is constructed of a glass fiber wet process mat coated with a latex based, highly inorganic filled, coating. The glass mat serves as reinforcement for the coating, and also the end product for improved dimensional stability. The coating fills the fiber mat to prevent product bleed through of substrate during converting. Atlas Web Technologies CGF enhances end product performance in a variety of commercial, residential and industrial composite applications.

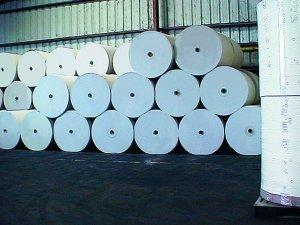

(click image to enlarge)

Quick Overview

Dry Weight = Nominal 40-pounds per 480-ft2

Caliper = 0.022-inches, ± 0.005-inches

Tensile, machine direction = 30-lbs pli minimum

Moisture = 1.0% to 3.0% as shipped

Roll width can be up to 50-3/4" ± 1/8" as specified by customer

Roll diameter can be from 42" minimum up to 54" maximum, as specified by customer

The heavy PVC core is 4" I.D.

Each roll will be tightly wound and be in such condition as to accept the core bungs for proper payoff while unwinding the roll.

No roll splices will occur within 6" of core or within 2" of the outer diameter. Splices will be flagged on the side of the roll - i.e. clearly marked. A roll will not contain more than 1 splice.

Each roll will be labeled with production date, shift, roll number, length, and weight.

Packaging of rolls will depend upon the roll size ordered and per customer request. Loads will be maximized for weight and damage protection.

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Additional Information

Manufacturer: Atlas Roofing Corporation
