Slip-On Guard Rail Bracket

SGB-4

Ellis Manufacturing Co., Inc.

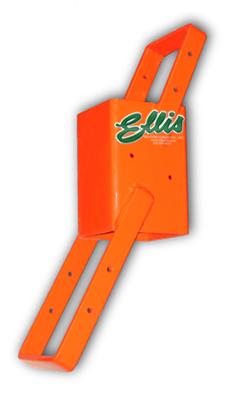

(click image to enlarge)
Quick Overview
  • Weight: 6 lbs
  • Material: 4”x4”x6” square tubing ¼” x 1” flat bar
  • Description: Fits 4x4 posts and 4x6 or 4x4 stringers or joists
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details
This guard rail bracket will slip onto a 4x6 stringers or can be turned over to fit 4x4 joists. To correctly install (as pictured in the drawing above), nail the Guardrail Bracket in position so the intended force is pushing in an opposite direction of the steel bar stop attached to purlin or joist. Then drop in a 4x4 post and secure it with nails through the holes in the tubing. Lastly, nail 2x4 horizontal rails on 4x4 post at preferred heights.
Additional Information
Manufacturer: Ellis Manufacturing Co., Inc.
For More Information on the Slip-On Guard Rail Bracket, [Click Here] to Link to Manufacturer Web Site
