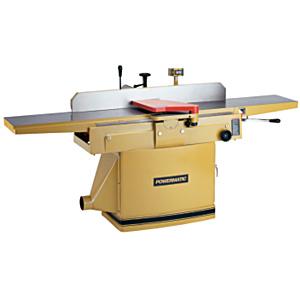

This 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard three-knife cutterhead or the solid steel Helical cutterhead. The helical system makes fast work of knife changing and never needs adjustment.

(click image to enlarge)

Quick Overview

Part Number: 1791308

Cutting Capacity (W x D): 11 3/4 x 3/4 "

Cutterhead Speed: 5000 RPM

Number of Knives (Helical/Standard): 42 two-sided inserts (30 x 12 x 2mm) with 2 rabbeting inserts

Standard Knife Size (L x W x T): 30 x 12 x 2 mm

Table Height: 31½ "

Table Size (L x W): 84 x 12 "

Fence Size (L x H): 47 x 5 1/2 "

Fence Tilts: 45 ° left, 45 ° right

Fence Positive Stops: -45 °, 45 ° and 90 °

Dust Port Outside Diameter: 6 "

Dust Collection Minimum CFM Required: 800 cu.ft/min

Motor Power: 3 HP

Motor Phase: 3 Ph

Motor Voltage: 230 / 460 V

Prewired Voltage: 230 V

Model Number: 1285

Brand: Powermatic

Overall Dimensions: 89.5 x 28 x 39

Height: 39 inch

Width: 28 inch

Length: 89.5 inch

Net Weight: 812 pound

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Helical cutterhead with 2-sided carbide inserts for fast knife changes with no adjustments

Rack and pinion adjustable cast iron fence assembly for smooth fence positioning without play

Parallelogram design for close table-to-cutterhead proximity and fast depth of cut adjustments

Large 84" x 12" table surface for heavy-duty work

Table "lips" on both sides of cutterhead aid in noise reduction

Full size rabbeting ledge supports large workpieces for rabbets up to 3/4" deep

3HP motor provides plenty of power

Standard Equipment:

Cutterhead guard

Heavy duty fence

Dust port

Push blocks

Tool kit

Additional Information

Manufacturer: Powermatic

For More Information on the 1285 3HP, 3Ph, 230V/460V (Prewired 230V), Helical Head, [Click Here] to Link to Manufacturer Web Site
