Membrane Drain

MDN

ACO Drain

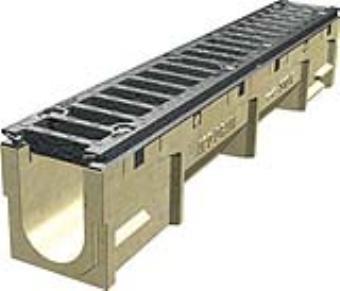

Specifically for use in suspended slab where any liquid permeating through the pavement is collected and directed into the trench drain. Loading is determined by grate, up to Load Class C.
(click image to enlarge)

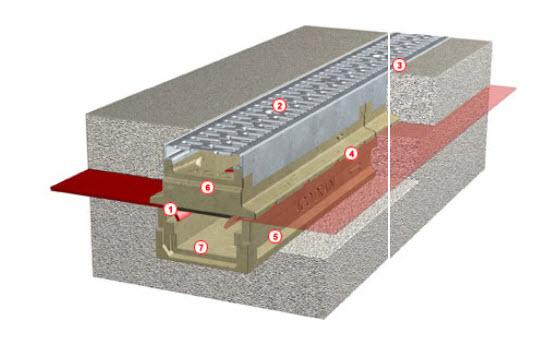

Quick Overview
    1. Membrane: is clamped between channel and subframe. Maximum membrane of 1/2” (12.7mm) can be accommodated - take care not to block weep holes if using a thick membrane. Liquids seep through the pavement, collect on the membrane (not supplied by ACO) and drain into the channel.
    2. Clamping device: an inverted ‘U’ shaped locking bar is fitted to the H80/H100 channel. The modified QuickLok locking bar is fitted to the Membrane drain subframe. Two bolts allow connection between the two bars and hold the membrane tight.
    3. Grates: sit directly into the membrane drain subframe and lock into position with a removable QuickLok locking bar mechanism.
    4. Weep holes: along each side allow liquids collecting on the membrane to run into the channel. Each weep hole opening is 1.18” (30mm) x 0.15” (4mm).
    5. Used with H80/H100 channel: Membrane subframe fits directly on the H80/H100 channels.
    6. Membrane end cap: use top part of K100S closing cap to close end of subframe. (Part # 96825).
    7. End caps and accessories: are available from the H80/H100 range.
