MiniKlassik

MKK

ACO Drain

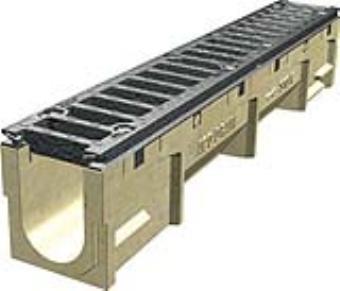

A 2” internal width system for high profile, aesthetic applications where a barrier is required to separate wet and dry areas. DIN 19580 does not cover grates for 2” (50mm) internal width trench drains, but grates have been load tested in accordance with DIN 19580 guidelines.
(click image to enlarge)
Quick Overview

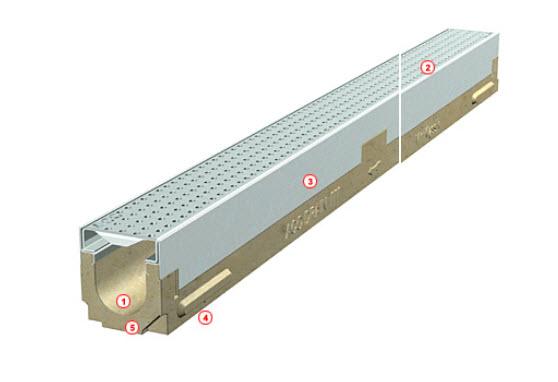

    1. 2” internal width trench system: meter (39.37”) channels. ‘U’ shaped bottom improves flow hydraulics.
    2. Choice of grates : Choice of grates
    3. Integrally cast-in galvanized steel edge rail: provides additional strength and protects the channel edge from damage. (Stainless steel edge rail also available).
    4. 1.5” Sch. 40 drill-out: allows vertical evacuation at male end of channel at any point along the run.
    5. Interconnecting end profiles: allow easy and effective joining of channels. Appropriate sealant can be used to create a sealed joint.
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details
MiniKlassik
Additional Information
Manufacturer: ACO Drain
