Series 600 Catch Basins

SCB600

ACO Drain

Series 600 multi-part polymer concrete catch basins are used with KlassikDrain, PowerDrain (S100K) and ChemDrain. The Type 610 top is used with either a short or deep base. Risers can be inserted between top and base if greater depth is required. A filter bag is available to fit Series 600 catch basins.
(click image to enlarge)

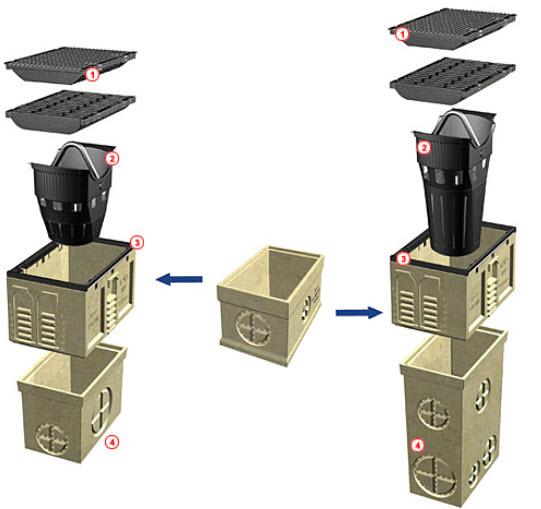

Quick Overview
    1. Grate: a choice of Class F slotted or Class E ADA compliant ductile iron grates supplied with PowerLok boltless locking.
    2. Trash bucket: a plastic trash bucket designed to collect debris washed down from the trench run. Available in short or deep to suit base used.
    3. Top section: with integrally cast-in ductile iron frame for grate. Has drill-outs on the side to guide connection of 4” polymer concrete channels at #5,10,15,20,25 and 30 heights. Other channels can be connected by removing wall to correct height.
    4. Base: choice of short or deep bases to suit flow or invert height required. Schedule 40 4”, 6” and 8” drill-outs enable easy pipe connection
    5. Riser: allows an increased invert height, can be used as single or multiple units. Fits between top section and base. Schedule 40 4” and 6” drill-outs allow inlet pipes to be added if required.
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details
Series 600 Catch Basins
Additional Information
Manufacturer: ACO Drain
