• Max. Flow: Gpm: 655
• Max. Head: Ft: 61'
• Pump Type: SLURRY HANDLING
• Strainer Opening: 1.375"
• Discharge Size: 4" NPT-MALE
• Shipping Weight:Lbs: 420

• Motor Casing: CAST IRON
• Pump Volute: DUCTILE IRON
• Impeller - Multi Vane: HIGH CHROME
• Lip Seals & O-Rings: BUNA-N
• Qty. Oil In Seal Chamber: 49 U.S.FL. OZ.

• Motor Rating: Hp: 10
• Motor Rpm: 1750
• Motor Insulation Class: H
• Motor Service Factor: 1.15
• Voltage: 460, 3PH-60HZ
• Current F.L.A.: 13
• Motor Protection: Thermal & Amp Overload
• Power Cord: Gage; Length: A.W.G. 10/5; 50'; SOOW, MSHA LISTED
• Maximum Liquid Temperature: 104°F

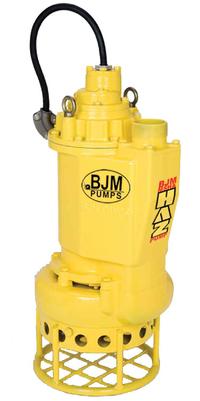

The HAZ pump is the first permissible slurry pump with an agitator. Designed to resist abrasive wear that causes loss of pump performance. Less down time, less maintenence and less repairs. Outlasts rubber lined and regular cast iron pumps.

• Permissible heavy duty hard metal agitator submersible slurry dewatering pump
• Designed and constructed for abrasive coal slurries
• High-Chrome iron impeller, wear plate and agitator
• Hardened ductile iron volute
• Built-in agitator mixes settled solids with pump water to restore sump or basin volume.
