Woven Geotextiles

TerraTex HD

Hanes Geo Components

Grab tensile strength of 350 lbs. Meets specifications set forth by AASHTO M288-00 for stabalization.
(click image to enlarge)
Quick Overview

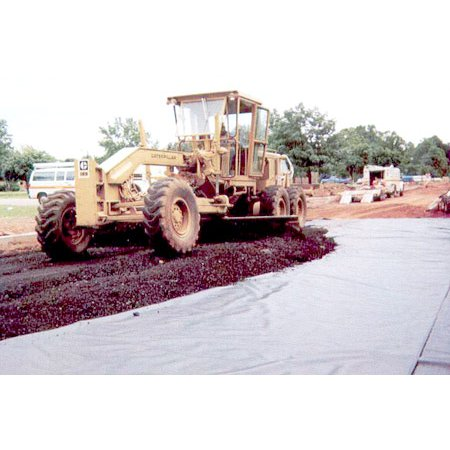

    TerraTex Woven Geotextiles are designed and manufactured for many construction applications. They perform the three primary functions of a geotextile: separation (separating the native subgrade from an aggregate layer); reinforcement (reinforcing an area by distributing weight over a wider area); and filtration (retaining soil while allowing the passage of water). TerraTex Woven Geotextiles are made of polypropylene filaments which are formed into a stable network such that they retain their relative position. A range of geotextiles is offered to meet the requirements of various applications.
    Roll Size: 12.5' x 360'
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details
TerraTex HD is a woven geotextile made up of polypropylene fibers. These fibers are woven to form a stable and durable network such that the fibers retain their relative position. It is non-biodegradable and resistant to most soil chemicals, acids and alkali with a pH range of 3 to 12. TerraTex HD is manufactured to meet or exceed the following minimum average roll values:
Property Test Method Minimum Average Roll Value English Minimum Average Roll Value Metric
Tensile Strength ASTM D-4632 315 lb 1.40 kN
Tensile Elongation ASTM D-4632 15% 15%
CBR Puncture ASTM D-6241 1000 lb 4.45 kN
Puncture Strength ASTM D-4833 120 lb 0.533 kN
Trapezoid Tear ASTM D-4533 120 lb 0.533 kN
UV Resistance ASTM D-4355 70% @ 500 hr 70% @ 500 hr
AOS(Max) ASTM D-4751 40 US Sieve 0.425 mm
Permittivity ASTM D-4491 .05 sec-1 .05 sec-1
Water Flow Rate ASTM D-4491 4 gal/min/ft2
 163 l/min/m2
Additional Information
Manufacturer: Hanes Geo Components
For More Information on the Woven Geotextiles, [Click Here] to Link to Manufacturer Web Site
